Moog Universal Tie Rod Ends by Size
Find all of the dimensions and measurements of all the tie rod ends that Moog has to offer. Whether you are looking for custom tie rods for a project car or can't find original parts for a rare vehicle you can use your measurements and this database of Moog tie rods to find a suitable equivalent. Check below for instruction on how to measure for tie rod ends by each specific dimension:
You should always try to use tie rods that are listed for your vehicle, but if you need a universal tie rod with specific measurements you can find it with this list. If you need universal inner tie rod ends as well, we have a database for those too.
If you have any questions about fitment you can contact our customer service folks by phone or chat and you can check our learning resource page for more information about Moog tie rod ends.
How to Read Rod/Stud Thread Specifications
The dimensions for tie rod ends is displayed as such:
- (Metric) M##-##(R/L) "M" for Metric Measurement, Thread Diameter - Thread Pitch, Right or Left Handed Thread
- (English) ##-##(R/L) Thread Diameter - Thread Pitch, Right or Left Handed Thread
Moog Outer Tie Rod Dimension Chart
| Image | Part Number | Length in | Rod Thread | Rod End Type | Thread Direction | Stud Small Taper in | Stud Large Taper in | Stud Thread |
|---|---|---|---|---|---|---|---|---|
|
MOOG-ES3581 | 2.37 | M14-1.5 | Female | Right hand | 0.498 | 0.551 | M10-1.25 |
|
MOOG-ES80995 | 2.37 | M14-1.5 | Female | Right hand | 0.534 | 0.593 | — |
|
MOOG-ES800929 | 2.75 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES3317 | 2.83 | M12-1.5 | Female | — | — | 0.629 | M12-1.5-6G |
|
MOOG-ES3616 | 2.86 | M14-1.5 | Female | Right hand | 0.539 | 0.59 | M12-1 |
|
MOOG-ES3388 | 2.86 | M12-1.25 | Female | — | 0.52 | — | M12-1.25 RH |
|
MOOG-ES3390 | 2.87 | M14-1.5 | Female | — | — | — | M10-1.25 |
|
MOOG-ES2347RL | 2.87 | M10-1.25R | Female | Right hand | 0.525 | 0.593 | M10-1.25 |
|
MOOG-ES2953 | 2.89 | M14-1.5R | Female | Right hand | 0.63 | 0.708 | M14-1.5 |
|
MOOG-ES2954 | 2.89 | M14-1.5L | Female | Left hand | 0.63 | 0.708 | M14-1.5 |
|
MOOG-ES3587 | 2.90 | M14-2.0 | Female | Right hand | 0.508 | — | M10-1.5-6G |
|
MOOG-ES3588 | 2.90 | M14-2.0 | Female | Right hand | 0.508 | — | M10-1.5-6G |
|
MOOG-ES80580 | 2.90 | M14-1.5 | Female | Right hand | 0.508 | 0.625 | M10-1.5 |
|
MOOG-ES3622 | 2.91 | M14-1.5 | Female | — | — | 0.59 | M12-1.5 |
|
MOOG-ES3689 | 2.91 | M16-1.5 | Female | — | — | 0.787 | M16-1.5 |
|
MOOG-ES800304 | 2.92 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800305 | 2.92 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800927 | 2.93 | M14-2 | Female | Right hand | — | — | — |
|
MOOG-ES80622 | 2.95 | M14-1.5 | Female | — | 0.629 | 0.708 | M14-1.5 |
|
MOOG-ES3704 | 3.00 | M12-1.25R | Female | Right hand | 0.525 | 0.589 | M10-1.25 |
|
MOOG-ES3377 | 3.07 | M14-1.5 | Female | Right hand | — | — | M12-1.25 |
|
MOOG-ES800874 | 3.07 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800219 | 3.10 | M14-1.5 | Female | Right hand | 0.506 | 0.59 | M12-1.25 |
|
MOOG-ES800471 | 3.10 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES140R | 3.11 | — | Male | Right hand | — | — | — |
|
MOOG-ES3048RL | 3.12 | M12-1.25R | Female | — | 0.517 | 0.591 | M12-1.25 |
|
MOOG-ES416L | 3.12 | — | Male | Left hand | — | — | — |
|
MOOG-ES416R | 3.12 | — | Male | Right hand | — | — | — |
|
MOOG-ES62L | 3.12 | — | Male | Left hand | — | — | — |
|
MOOG-ES3315 | 3.14 | M14-1.5 | Male | — | 0.574 | — | M12-1.5 |
|
MOOG-ES3713 | 3.22 | M15-1.5R | Female | — | 0.49 | 0.59 | M12-1.25 |
|
MOOG-ES800363 | 3.23 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES80309 | 3.30 | M15-1.5 | Female | Right hand | 0.548 | 0.593 | M12-1.25 |
|
MOOG-ES80941 | 3.30 | M15-1.5 | Female | — | 0.53 | 0.631 | M12-1.25 |
|
MOOG-ES3306 | 3.30 | M15-1.5R | Female | Right hand | 0.486 | 0.594 | M12-1.25 |
|
MOOG-ES3021L | 3.35 | M12-1.5L | Male | — | 0.425 | 0.472 | M10-1.0 |
|
MOOG-ES2361 | 3.35 | M14-1.5R | Female | Right hand | 0.537 | 0.594 | M12-1.25 |
|
MOOG-ES2010L | 3.38 | .875-18L | Male | Left hand | 0.675 | 0.776 | 5/8 - 18 |
|
MOOG-ES2010R | 3.38 | .875-18R | Male | Right hand | 0.675 | 0.776 | 5/8 - 18 |
|
MOOG-ES452L | 3.38 | .875-18L | Male | Left hand | 0.675 | 0.765 | 9/16 - 18 |
|
MOOG-ES453L | 3.38 | .875-18L | Male | — | 0.675 | 0.765 | 9/16 - 18 |
|
MOOG-ES412RL | 3.38 | — | Male | — | — | — | — |
|
MOOG-ES2847RT | 3.38 | .750-16R | Female | Right hand | 0.543 | 0.63 | 1/2 - 20R |
|
MOOG-ES2848LT | 3.38 | .750-16L | Male | Left hand | 0.543 | 0.63 | 1/2 - 20R |
|
MOOG-ES2382 | 3.39 | M14-1.5R | Female | Right hand | 0.492 | 0.59 | M12-1.25 |
|
MOOG-ES455RL | 3.40 | — | Female | Right hand | — | — | — |
|
MOOG-ES429RL | 3.40 | — | — | Right hand | — | — | — |
|
MOOG-ES2084L | 3.50 | M14-1.5L | Male | Left hand | 0.496 | 0.567 | M10-1.5 |
|
MOOG-ES2096R | 3.50 | M14-1.5R | Male | Right hand | 0.496 | 0.567 | M10-1.5 |
|
MOOG-ES150L | 3.50 | — | Male | Left hand | — | — | — |
|
MOOG-ES150R | 3.50 | — | Male | Right hand | — | — | — |
|
MOOG-ES800419 | 3.53 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES80558 | 3.54 | M14-1.5L | Male | — | — | 0.59 | M12-1.5 |
|
MOOG-ES80559 | 3.54 | M14-1.5R | Male | — | — | 0.59 | M12-1.5 |
|
MOOG-ES3470 | 3.62 | M16-1.5 | Female | — | — | 0.62 | M10-1.0-6G |
|
MOOG-ES2376 | 3.65 | M17-1.5L | Male | Left hand | 0.577 | 0.641 | M14-1.5 |
|
MOOG-ES3198RL | 3.69 | M18-1.5R | Male | — | 0.468 | 0.58 | M10-1.25 |
|
MOOG-ES3191 | 3.70 | M12-1.25R | Male | Right hand | 0.519 | 0.592 | M12-1.25 |
|
MOOG-ES3438 | 3.70 | M14-1.5R | Female | Right hand | 0.511 | 0.61 | M12-1.25 RH |
|
MOOG-ES3466 | 3.70 | M14-1.50 | Female | Right hand | 0.580 | 0.650 | M14-1.50 |
|
MOOG-ES3524 | 3.70 | M14-1.5 | Female | Right hand | 0.518 | 0.496 | M12-1.5 |
|
MOOG-ES3525 | 3.70 | M14-1.5 | Female | Right hand | 0.518 | 0.496 | M12-1.5 |
|
MOOG-ES3660 | 3.70 | M14-1.5 | Female | Left hand | — | 0.708 | M14-1.5-2 |
|
MOOG-ES3602 | 3.70 | M12-1.25 | Female | — | — | 0.59 | M12-1.25-2 |
|
MOOG-ES80666 | 3.70 | M16-1.5 | Female | — | — | 0.629 | M12-1.5 |
|
MOOG-ES80667 | 3.70 | M16-1.5 | Female | — | — | 0.629 | M12-1.5 |
|
MOOG-ES800527 | 3.70 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES80589 | 3.70 | M18-1.5L | Male | Left hand | 0.566 | 0.645 | M12-1.25 |
|
MOOG-ES176L | 3.75 | — | Male | Left hand | — | — | — |
|
MOOG-ES800686 | 3.78 | — | Female | — | — | — | — |
|
MOOG-ES3197RL | 3.78 | M14-1.5R | Female | Right hand | 0.509 | 0.61 | M12-1.25 |
|
MOOG-ES2912RL | 3.80 | M14-1.5R | Female | Right hand | 0.488 | 0.593 | M12-1.25 |
|
MOOG-ES2908RL | 3.86 | M14-1.5R | Female | Right hand | 0.535 | 0.705 | M12-1.75 |
|
MOOG-ES3238RL | 3.86 | M14-1.5R | Female | Right hand | 0.486 | 0.593 | M12-1.25 |
|
MOOG-ES3452 | 3.86 | M14-1.5R | Female | Right hand | 0.489 | 0.634 | M12-1.25-6G RH |
|
MOOG-ES351RL | 3.88 | — | — | Left hand | — | — | — |
|
MOOG-ES314RL | 3.88 | — | — | Right hand | — | — | — |
|
MOOG-ES176R | 3.88 | M12-1.25 | Female | — | — | — | — |
|
MOOG-ES800073 | 3.88 | M14-1.5R | Female | — | 0.525 | — | M12-1.25 |
|
MOOG-ES800525 | 3.94 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800470 | 3.94 | M12-1.25 | Female | — | — | — | — |
|
MOOG-ES800860 | 3.94 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES800861 | 3.94 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES317L | 3.94 | — | — | Right hand | — | — | — |
|
MOOG-ES2814RL | 3.94 | M12-1.25R | Female | Right hand | 0.511 | — | M12-1.25 RH |
|
MOOG-ES319R | 3.94 | — | — | Right hand | — | — | — |
|
MOOG-ES3631 | 3.94 | M16-1.5 | Female | Right hand | — | — | M12-1.25-6G |
|
MOOG-ES800846 | 3.96 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES80805 | 4.00 | — | Female | — | — | — | — |
|
MOOG-ES401R | 4.00 | — | Male | Right hand | — | — | — |
|
MOOG-ES352R | 4.00 | — | Male | Right hand | — | — | — |
|
MOOG-ES323R | 4.00 | — | Male | Right hand | — | — | — |
|
MOOG-ES3052 | 4.00 | M18-1.5L | Male | Left hand | 0.52 | 0.59 | M12-1.25 |
|

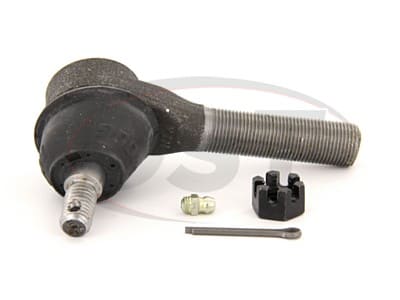

MOOG-ES435RL | 4.01 | — | Male | Left hand | — | — | — |
|
MOOG-ES80574 | 4.01 | M17-1.5 | Female | Right hand | 0.59 | 0.744 | M14-1.5 |
|
MOOG-ES801123 | 4.01 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3349RL | 4.02 | M14-1.5R | Female | Right hand | 0.534 | 0.69 | M12-1.25 |
|
MOOG-ES368RL | 4.06 | — | — | Left hand | — | — | — |
|
MOOG-ES800984 | 4.06 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800510 | 4.06 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800367 | 4.12 | M16-1.5 | Female | — | 0.59 | 0.75 | M14-1.5 |
|
MOOG-ES2011R | 4.12 | — | Male | Right hand | — | — | — |
|
MOOG-ES800333 | 4.13 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3669 | 4.15 | M14-1.5R | Female | Right hand | 0.566 | 0.613 | M12-1.25 |
|
MOOG-ES2231RL | 4.17 | M14-1.5R | Female | Right hand | 0.535 | 0.705 | M12-1.75 |
|
MOOG-ES800222 | 4.19 | M14-1.5R | Female | Right hand | 91 | CONE | M14-2.0 |
|
MOOG-ES3307RL | 4.20 | M16-1.5 | Female | Right hand | — | 0.688 | M12-1.25-6G |
|
MOOG-ES3495 | 4.20 | M16-1.5L | Male | Left hand | 0.581 | 0.65 | 1/2 - 20 |
|
MOOG-ES801170 | 4.21 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800025 | 4.21 | M17-1.5 | Female | Right hand | 0.484 | 0.592 | M10-1.25 |
|
MOOG-ES800026 | 4.21 | M17-1.5 | Female | Right hand | 0.484 | 0.592 | M10-1.25 |
|
MOOG-ES80991 | 4.23 | M14-1.5 | Female | Right hand | 0.562 | 0.625 | — |
|
MOOG-ES3181RL | 4.24 | M14-1.5R | Female | Right hand | 0.533 | — | M12-1.25 |
|
MOOG-ES800030 | 4.25 | M14-1.5 | Female | Right hand | 0.486 | 0.644 | M12-1.75 |
|
MOOG-ES2513RL | 4.30 | M14-1.5R | Female | — | 0.525 | 0.626 | M12-1.25 |
|
MOOG-ES800954 | 4.32 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800955 | 4.32 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2222L | 4.33 | M20-1.5L | Male | Left hand | — | — | — |
|
MOOG-ES3691 | 4.33 | M16-1.5R | Female | Right hand | 0.635 | — | M14-2 |
|
MOOG-ES800939 | 4.37 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES375L | 4.38 | — | Male | Right hand | — | — | — |
|
MOOG-ES375R | 4.38 | — | Male | Left hand | — | — | — |
|
MOOG-ES336R | 4.40 | — | — | Right hand | — | — | — |
|
MOOG-ES800848 | 4.40 | M18-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800849 | 4.40 | M18-1.5 | Female | — | — | — | — |
|
MOOG-ES387R | 4.41 | — | — | Right hand | — | — | — |
| MOOG-ES360RL | 4.41 | — | — | Right hand | — | — | — | |
|
MOOG-ES3142RL | 4.41 | M12-1.25R | Female | — | 0.505 | 0.611 | M12-1.25 |
|
MOOG-ES336L | 4.44 | — | Male | Right hand | — | — | — |
|
MOOG-ES3122R | 4.44 | 7/8-18R | Male | Right hand | — | 0.771 | 5/8 - 18 |
|
MOOG-ES2082R | 4.44 | — | Male | Right hand | — | — | — |
|
MOOG-ES2083L | 4.44 | — | Male | Left hand | — | — | — |
|
MOOG-ES800952 | 4.44 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2261RL | 4.50 | M14-1.5R | Female | Right hand | 0.486 | 0.593 | M12-1.25 |
|
MOOG-ES3200RL | 4.50 | M14-1.5R | Female | — | 0.511 | 0.61 | M12-1.25 |
|
MOOG-ES3173RL | 4.50 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3401RL | 4.50 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3459 | 4.50 | M14-1.5R | Female | Right hand | 0.483 | 0.63 | M12-1.25 |
|
MOOG-ES800643 | 4.52 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3584 | 4.53 | 11/16-18L | — | Left hand | 0.509 | 0.593 | M12-1.25 |
|
MOOG-ES800464 | 4.54 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES80761 | 4.54 | M14-1.5 | Female | Right hand | 0.586 | 0.703 | M14-2 |
|
MOOG-ES800949 | 4.60 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800640 | 4.62 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES348R | 4.62 | — | — | Right hand | — | — | — |
|
MOOG-ES800852 | 4.69 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3572 | 4.70 | M15-1.5 | Female | Right hand | — | — | M14-1.5 |
|
MOOG-ES3573 | 4.70 | M15-1.5 | Female | Right hand | — | — | M14-1.5 |
|
MOOG-ES2262RL | 4.71 | M14-1.5R | Female | — | 0.594 | 0.703 | M14-1.5 |
|
MOOG-ES3446T | 4.72 | M15-1.5R | Female | Right hand | 0.594 | 0.703 | M14-1.5-6G RH |
|
MOOG-ES3447T | 4.72 | M15-1.5R | Female | Right hand | 0.594 | 0.703 | M14-1.5-6G RH |
|
MOOG-ES3571 | 4.72 | M15-1.5 | Female | Right hand | — | — | M14-1.5 |
|
MOOG-ES800986 | 4.72 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800321 | 4.72 | M15-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES80643 | 4.73 | M16-1.5 | Female | Right hand | 0.59 | 0.75 | M14-1.5 |
|
MOOG-ES80644 | 4.73 | M16-1.5 | Female | Right hand | 0.59 | 0.75 | M14-1.5 |
|
MOOG-ES3011RL | 4.74 | M15-1.5R | Female | — | 0.621 | 0.703 | 9/16 - 18 |
|
MOOG-ES3538 | 4.75 | M18-1.5 | Female | Right hand | — | — | M14-1.5 |
|
MOOG-ES3609 | 4.80 | M14-1.5R | Female | Right hand | 0.565 | — | M14-1.5 |
|
MOOG-ES2234R | 4.81 | .875-18R | Male | Right hand | 0.675 | 0.776 | 5/8 - 18 |
|
MOOG-ES800901 | 4.84 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2064L | 4.84 | — | Male | — | — | — | — |
|
MOOG-ES3695 | 4.85 | M16-1.5R | Female | Right hand | 91 | CONE | M14-2 |
|
MOOG-ES3667 | 4.86 | M14-1.5R | Female | Right hand | 0.604 | 0.736 | M14-1.5 |
|
MOOG-ES3461 | 4.86 | M14-1.5R | Female | Right hand | 0.602 | — | M14-1.5 |
|
MOOG-ES3302RL | 4.86 | M14-1.5R | Female | Right hand | 0.604 | 0.736 | M14-1.5 |
|
MOOG-ES80786 | 4.86 | M14-1.5 | Female | Right hand | — | — | M14-2 |
|
MOOG-ES80895 | 4.87 | M16-1.5 | Female | Right hand | 0.598 | 0.671 | M14-1.5 |
|
MOOG-ES800799 | 4.88 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800800 | 4.88 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2065L | 4.88 | .875-18L | Male | Left hand | 0.612 | 0.703 | 9/16 - 18 |
|
MOOG-ES187L | 4.88 | — | Male | — | — | — | — |
|
MOOG-ES3486 | 4.88 | M18-1.5 | Female | — | 0.574 | 0.629 | M12-P1.25 |
|
MOOG-ES3487 | 4.88 | M18-1.5 | Female | — | 0.574 | 0.629 | M12-P1.25 |
|
MOOG-ES3453 | 4.90 | M14-1.5R | Female | Right hand | 0.483 | 0.63 | M12-1.25 |
|
MOOG-ES3614 | 4.90 | M14-1.5R | Female | Right hand | 0.493 | 0.625 | M12-1.25 |
|
MOOG-ES3537 | 4.90 | M14-1.5 | Female | Right hand | 0.492 | — | M12-1.25 |
|
MOOG-ES800408 | 4.90 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES80378 | 4.90 | M15-1.5 | Female | Right hand | 0.602 | 0.671 | M14-1.5 |
|
MOOG-ES3535 | 4.92 | M16-1.5 | Female | Right hand | — | — | M14-1.5 |
|
MOOG-ES3536 | 4.92 | M16-1.5 | Female | Right hand | — | — | M14-1.5 |
|
MOOG-ES2062R | 4.95 | 1.0-16R | Male | Right hand | 0.783 | 0.905 | 3/4 - 16 |
|
MOOG-ES2147RL | 4.98 | .875-18R | Male | Right hand | 0.664 | 0.776 | 5/8 - 18 |
|
MOOG-ES2128RL | 5.00 | — | Female | — | — | — | — |
|
MOOG-ES3493T | 5.00 | M14-1.5R | Female | Right hand | 0.483 | 0.63 | M12-125-6G RH |
|
MOOG-ES3618 | 5.11 | M14-1.5 | Female | — | 0.546 | 0.629 | M12-1.25 |
|
MOOG-ES3621 | 5.11 | M14-1.5 | Female | — | 0.546 | 0.629 | M12-1.25 |
|
MOOG-ES3654 | 5.11 | M15-1.5 | Female | — | — | — | M12-1.5 |
|
MOOG-ES3655 | 5.11 | M15-1.5 | Female | — | — | 0.59 | M12-1.25 |
|
MOOG-ES3051L | 5.11 | M16-1.5L | Male | — | 0.521 | 0.59 | M12-1.25 |
|
MOOG-ES3002R | 5.12 | M16-1.5R | Male | — | 0.521 | 0.59 | M12-1.25 |
|
MOOG-ES800309 | 5.12 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800310 | 5.12 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES3376 | 5.15 | M16-1.5L | Male | — | 0.561 | 0.629 | M12-1.5 |
|
MOOG-ES3375 | 5.16 | M16-1.5 | Male | — | 0.561 | — | M12-1.5 |
|
MOOG-ES2120R | 5.16 | .687-18R | Male | Right hand | 0.621 | 0.703 | 9/16 - 18 |
|
MOOG-ES2121L | 5.16 | .687-18L | Male | Left hand | 0.621 | 0.703 | 9/16 - 18 |
|
MOOG-ES800412 | 5.26 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES800413 | 5.26 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES3316 | 5.31 | M14-1.5 | Male | — | 0.551 | — | M12-1.5 |
|
MOOG-ES800409 | 5.35 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800410 | 5.35 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES80578 | 5.36 | M14-1.5 | Female | Right hand | 0.55 | — | M12-1.25 |
|
MOOG-ES80579 | 5.36 | M14-1.5 | Female | Right hand | 0.55 | — | M12-1.25 |
|
MOOG-ES2396R | 5.36 | 1.0-18R | Male | Right hand | 0.594 | 0.703 | M14-1.5 |
|
MOOG-ES3529 | 5.36 | M17-1.5R | Female | Right hand | — | — | M10-1.25 |
|
MOOG-ES2214R | 5.37 | M22-1.5R | Male | Right hand | 0.594 | 0.703 | M14-1.5 |
|
MOOG-ES2215L | 5.37 | M20-1.5L | Male | Left hand | 0.594 | 0.703 | M14-1.5 |
|
MOOG-ES3342R | 5.37 | M22-1.5R | Male | Right hand | 0.594 | 0.703 | M14-1.5 |
|
MOOG-ES3343L | 5.37 | M20-1.5L | Male | Left hand | 0.594 | 0.703 | M14-1.5 |
|
MOOG-ES3203L | 5.37 | M22-1.5L | Male | Left hand | 0.594 | 0.703 | M14-1.5 |
|
MOOG-ES3172RLT | 5.37 | — | Male | — | — | — | — |
|
MOOG-ES3094L | 5.37 | — | Male | — | — | — | — |
|
MOOG-ES3009R | 5.37 | 1.0-18R | Male | Right hand | 0.613 | 0.723 | M14-1.5 |
|
MOOG-ES800086 | 5.37 | M14-1.5R | Female | Right hand | 0.487 | 0.63 | M12-1.75 |
|
MOOG-ES3248RT | 5.39 | — | Male | Right hand | — | — | — |
|
MOOG-ES800286 | 5.41 | M16-1.5 | Female | Right hand | 0.588 | 0.71 | M14-1.5 |
|
MOOG-ES3096L | 5.42 | M22-1.5L | Male | Left hand | — | — | — |
|
MOOG-ES3712 | 5.43 | M14-1.5R | Female | Right hand | 0.521 | 0.59 | M12-1.5 |
|
MOOG-ES2077RT | 5.43 | — | Male | — | — | — | — |
|
MOOG-ES801269 | 5.43 | — | Female | — | — | — | — |
|
MOOG-ES801270 | 5.43 | — | Female | — | — | — | — |
|
MOOG-ES423L | 5.44 | — | Male | Left hand | — | — | — |
|
MOOG-ES423R | 5.44 | — | Male | Right hand | — | — | — |
|
MOOG-ES3184RL | 5.45 | M14-1.5R | Female | Right hand | 0.554 | 0.626 | M12-1.25 |
|
MOOG-ES800945 | 5.47 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800946 | 5.47 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES80311 | 5.50 | M14-1.5 | Female | Right hand | 0.548 | 0.695 | M14-2 |
|
MOOG-ES800948 | 5.51 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800223 | 5.52 | M16-1.5 | Female | Right hand | 0.542 | 0.696 | M14-1.5 |
|
MOOG-ES800403 | 5.59 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800621 | 5.59 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800514 | 5.60 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800515 | 5.60 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2727R | 5.67 | M22-1.5R | Male | Right hand | 0.594 | 0.703 | M14-1.5 |
|
MOOG-ES2728L | 5.67 | M22-1.5L | Male | Left hand | 0.595 | 0.703 | M14-1.5 |
|
MOOG-ES800027 | 5.70 | M14-1.5 | Female | Right hand | 0.507 | 0.594 | M12-1.25 |
|
MOOG-ES800028 | 5.70 | M14-1.5 | Female | Right hand | 0.507 | 0.594 | M12-1.25 |
|
MOOG-ES404RL | 5.71 | — | Male | — | — | — | — |
|
MOOG-ES800605 | 5.71 | — | Female | — | — | — | — |
|
MOOG-ES800606 | 5.71 | — | Female | — | — | — | — |
|
MOOG-ES800797 | 5.71 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800798 | 5.71 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800101 | 5.71 | M14-1.5 | Female | Right hand | 0.505 | — | M12-1.25 |
|
MOOG-ES800102 | 5.71 | M14-1.5 | Female | Right hand | 0.505 | — | M12-1.25 |
|
MOOG-ES800401 | 5.74 | — | Male | — | — | — | — |
|
MOOG-ES381RL | 5.75 | — | Male | — | — | — | — |
|
MOOG-ES3492T | 5.78 | M14-1.5R | Female | Right hand | 0.483 | 0.63 | M12-1.25-6G RH |
|
MOOG-ES3374RL | 5.78 | M14-1.5 | Female | Right hand | 0.484 | 0.592 | M12-1.25 |
|
MOOG-ES3455 | 5.78 | M14-1.5R | Female | Right hand | 0.483 | 0.63 | M12-1.25 RH |
|
MOOG-ES3362L | 5.79 | M22-1.5L | Male | Left hand | 0.594 | 0.703 | M14-1.5 |
|
MOOG-ES3363T | 5.79 | 1.0-18R | Male | Right hand | 0.594 | 0.703 | M14-1.5-6G RH |
|
MOOG-ES800662 | 5.79 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800663 | 5.79 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES801448 | 5.79 | — | Female | Right hand | — | — | — |
|
MOOG-ES800402 | 5.81 | — | Male | — | — | — | — |
|
MOOG-ES3540 | 5.81 | M20-1.5L | Male | Left hand | 0.591 | 0.74 | M14-1.5 |
|
MOOG-ES2150RL | 5.85 | .562-18R | Female | Right hand | 0.556 | 0.626 | 1/2 - 20 |
|
MOOG-ES187R | 5.88 | — | Male | — | — | — | — |
|
MOOG-ES3202R | 5.88 | 1.0-18R | Male | Right hand | 0.594 | 0.703 | M14-1.5R |
|
MOOG-ES3370T | 5.90 | M18-1.5L | Male | Left hand | 0.613 | 0.703 | M14-1.5-6H RH |
|
MOOG-ES3369T | 5.90 | M18-1.5R | Male | Right hand | 0.613 | 0.703 | M14-1.5-6H RH |
|
MOOG-ES3632 | 5.90 | M14-1.5 | Female | — | — | 0.716 | M14-1.5-6G RH |
|
MOOG-ES800428 | 5.91 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800429 | 5.91 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES801156 | 5.94 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES801157 | 5.94 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800574 | 5.98 | M12-1.25 | Female | Right hand | — | — | — |
|
MOOG-ES800575 | 5.98 | M12-1.25 | Female | Right hand | — | — | — |
|
MOOG-ES80360 | 6.00 | M14-1.5 | Female | Right hand | 0.49 | 0.592 | M12-1.25 |
|
MOOG-ES80361 | 6.00 | M14-1.5 | Female | Right hand | 0.49 | 0.592 | M12-1.25 |
|
MOOG-ES800269 | 6.10 | M14-1.5 | Male | Right hand | 0.688 | 0.688 | — |
|
MOOG-ES3646 | 6.10 | M14-1.5 | Male | Right hand | 0.688 | 0.688 | — |
|
MOOG-ES3625 | 6.10 | 1.0-18R | Male | Right hand | 0.59 | — | M14-1.5 |
|
MOOG-ES800404 | 6.14 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3526 | 6.15 | 1.0-18R | Male | Right hand | 0.518 | — | M14-1.5 |
|
MOOG-ES800039 | 6.17 | M14-1.5 | Female | Right hand | — | 0.629 | M12-1.25 |
|
MOOG-ES800042 | 6.17 | M14-1.5 | Female | Right hand | — | 0.629 | M12-1.25 |
|
MOOG-ES800914 | 6.18 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800915 | 6.18 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES3564 | 6.21 | M18-1.5 | Female | Right hand | — | — | M14-1.5 |
|
MOOG-ES3565 | 6.21 | M18-1.5 | Female | Right hand | — | — | M14-1.5 |
|
MOOG-ES80381 | 6.22 | M18-1.5 | Female | — | 0.602 | 0.671 | M14-1.5 |
|
MOOG-ES80382 | 6.22 | M18-1.5 | Female | — | 0.602 | 0.671 | M14-1.5 |
|
MOOG-ES800303 | 6.25 | M14-1.5R | Female | Right hand | 0.534 | 0.593 | M12-1.25 |
|
MOOG-ES801247 | 6.28 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES801248 | 6.28 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800397 | 6.34 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES800478 | 6.34 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES415RL | 6.38 | — | Male | — | — | — | — |
|
MOOG-ES2027L | 6.40 | .875-18L | Male | — | 0.715 | 0.795 | 5/8 - 18 |
|
MOOG-ES80302 | 6.41 | M14-1.5 | Female | — | — | 0.61 | M12-1.25 |
|
MOOG-ES80303 | 6.41 | M14-1.5 | Female | — | — | 0.61 | M12-1.25 |
|
MOOG-ES80431 | 6.41 | M15-1.5 | Female | — | 0.49 | 0.59 | M12-1.25 |
|
MOOG-ES80432 | 6.41 | M15-1.5 | Female | — | 0.49 | 0.59 | M12-1.25 |
|
MOOG-ES3367T | 6.47 | M18-1.5R | Male | Right hand | 0.58 | 0.7 | M14-1.5-6G RH |
|
MOOG-ES3366T | 6.48 | M18-1.5L | Male | Left hand | 0.58 | 0.7 | M14-1.5-6G RH |
|
MOOG-ES80585 | 6.49 | M14-1.5 | Female | — | 0.547 | 0.59 | M12-1.25 |
|
MOOG-ES80584 | 6.52 | M14-1.5 | Female | Right hand | 0.547 | 0.59 | M12-1.25 |
|
MOOG-ES3494 | 6.53 | M16-1.5R | Male | Right hand | 0.581 | 0.65 | 1/2 - 20 |
|
MOOG-ES3527 | 6.54 | 1.0-18R | Male | — | 0.654 | 0.74 | M14-1.5 |
|
MOOG-ES3247RT | 6.61 | — | Male | — | — | — | — |
|
MOOG-ES3624 | 6.61 | 1.0-18R | Male | — | 0.652 | — | M14-1.5 |
|
MOOG-ES800212 | 6.67 | M15-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800213 | 6.67 | M15-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800056 | 6.69 | M16-1.5 | Female | — | 0.521 | 0.59 | M12-1.25 |
|
MOOG-ES800036 | 6.69 | M16-1.5 | Female | — | 0.521 | 0.59 | M12-1.25 |
|
MOOG-ES801167 | 6.69 | — | Female | Right hand | — | — | — |
|

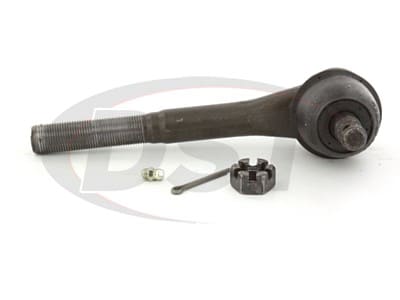

MOOG-ES409RT | 6.69 | — | Male | — | — | — | — |
|
MOOG-ES3586 | 6.71 | — | Female | — | — | — | — |
|
MOOG-ES3585 | 6.71 | — | Female | — | — | — | — |
|
MOOG-ES801186 | 6.73 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES801187 | 6.73 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES80944 | 6.75 | M15-1.5 | Female | Right hand | 0.531 | 0.633 | M12-1.25 |
|
MOOG-ES2245R | 6.77 | M16-1.5R | Male | — | 0.531 | 0.61 | M12-1.25 |
|
MOOG-ES2218RL | 6.80 | .687-18R | Male | Right hand | 0.593 | 0.752 | 9/16 - 18 |
|
MOOG-ES800311 | 6.81 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800312 | 6.81 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES3185L | 6.82 | 1.0-16L | Male | Left hand | 0.675 | 0.78 | 5/8 - 18 |
|
MOOG-ES2925L | 6.84 | 1.0-16L | Male | Left hand | 0.613 | 0.72 | M14-1.5 |
|
MOOG-ES800426 | 6.88 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800427 | 6.88 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES80687 | 6.88 | M14-1.5 | Female | Right hand | 0.633 | — | M14-1.5 |
|
MOOG-ES80688 | 6.88 | M14-1.5 | Female | — | 0.633 | — | M14-1.5 |
|
MOOG-ES800941 | 6.88 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800942 | 6.88 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800530 | 6.89 | — | Female | — | — | — | — |
|
MOOG-ES800811 | 6.90 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES444L | 7.00 | — | Male | Left hand | — | — | — |
|
MOOG-ES3254RL | 7.04 | .687-18R | Male | Right hand | 0.5 | 0.622 | M12-1.75 |
|
MOOG-ES800313 | 7.05 | M22-1.5 | Female | — | — | — | — |
|
MOOG-ES800314 | 7.05 | M22-1.5 | Female | — | — | — | — |
|
MOOG-ES3693 | 7.06 | M14-1.5R | Female | Right hand | 91 | CONE | M12-1.75 |
|
MOOG-ES3694 | 7.06 | M14-1.5R | Female | Right hand | 91 | CONE | M12-1.75 |
|
MOOG-ES800680 | 7.09 | — | Male | — | — | — | — |
|
MOOG-ES801162 | 7.09 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES801163 | 7.09 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2943R | 7.12 | M14-1.5R | Female | — | 0.509 | 0.555 | M10-1.25 |
|
MOOG-ES2946L | 7.12 | M14-1.5R | Female | — | 0.509 | 0.555 | M10-1.25 |
|
MOOG-ES801062 | 7.14 | — | Female | — | — | — | — |
|
MOOG-ES801063 | 7.14 | — | Female | — | — | — | — |
|
MOOG-ES3331R | 7.15 | M14-1.5R | Female | Right hand | 0.499 | 0.555 | M10-1.25 |
|
MOOG-ES3332R | 7.15 | M14-1.5R | Female | Right hand | 0.499 | 0.555 | M10-1.25 |
|
MOOG-ES800582 | 7.17 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800583 | 7.17 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3004RL | 7.18 | M14-1.5R | Female | — | 0.554 | 0.626 | M12-1.25 |
|
MOOG-ES350L | 7.20 | — | Male | — | — | — | — |
|
MOOG-ES800048 | 7.21 | M16-1.5 | Female | Right hand | 0.58 | — | M14-1.5 |
|
MOOG-ES800108 | 7.21 | M16-1.5R | Female | Right hand | 0.58 | 0.7 | M14-1.5 |
|
MOOG-ES800414 | 7.22 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800415 | 7.22 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800484 | 7.24 | — | Male | Right hand | — | — | — |
|
MOOG-ES800762 | 7.24 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800763 | 7.24 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3417T | 7.24 | 1-16R | Male | Right hand | 0.625 | 0.768 | M14-1.5-6G RH |
|
MOOG-ES3418 | 7.24 | 7/8 - 16 | Male | — | 0.624 | — | M14-1.5-6G RH |
|
MOOG-ES800386 | 7.25 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800387 | 7.25 | M14-1.5 | Female | — | — | — | — |
|
MOOG-DS300008 | 7.27 | — | — | Right hand | — | — | — |
|
MOOG-ES2374 | 7.28 | M17-1.5R | Male | Right hand | 0.577 | 0.641 | M14-1.5 |
|
MOOG-ES800341 | 7.32 | M15-1.5 | Female | — | — | — | — |
|
MOOG-ES3155RL | 7.34 | M14-1.5I | Female | — | 0.548 | 0.631 | M12-1.25 |
|
MOOG-ES801596 | 7.36 | — | Male | Right hand | — | — | — |
|
MOOG-ES801597 | 7.36 | — | Male | Right hand | — | — | — |
|
MOOG-ES800841 | 7.36 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800842 | 7.36 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800349 | 7.41 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800350 | 7.41 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800287 | 7.41 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800288 | 7.41 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES801189 | 7.42 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES801190 | 7.42 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2836RL | 7.44 | — | Male | Right hand | — | — | — |
|
MOOG-ES800033 | 7.48 | M12-1.5 | Female | Right hand | 0.516 | 0.59 | M12-1.5 |
|
MOOG-ES800034 | 7.48 | M12-1.5 | Female | Right hand | 0.516 | 0.59 | M12-1.5 |
|
MOOG-ES80602 | 7.51 | M15-1.5 | Female | Right hand | 0.531 | 0.633 | M12-1.25 |
|
MOOG-ES80603 | 7.51 | M15-1.5 | Female | Right hand | 0.531 | 0.633 | M12-1.25 |
|
MOOG-ES3601 | 7.52 | M14-1.5R | Female | Right hand | 0.492 | — | M12-1.25-6G |
|
MOOG-ES800805 | 7.54 | — | Female | — | — | — | — |
|
MOOG-ES800806 | 7.54 | — | Female | — | — | — | — |
|
MOOG-ES3600 | 7.59 | M14-1.5R | Female | Right hand | 0.492 | — | M12-1.25-6G |
|
MOOG-ES800337 | 7.60 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800338 | 7.60 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES80676 | 7.63 | M14-1.5 | Female | — | — | — | M14-1.5 |
|
MOOG-ES80624 | 7.64 | M16-1.5 | Female | Right hand | 0.582 | 0.708 | M14-1.5 |
|
MOOG-ES800046 | 7.67 | M14-1.5 | Female | Right hand | 0.551 | 0.708 | M14-1.5 |
|
MOOG-ES800053 | 7.69 | M16-1.5 | Female | Right hand | 0.531 | 0.629 | M12-1.25 |
|
MOOG-ES800054 | 7.69 | M16-1.5 | Female | Right hand | 0.531 | 0.629 | M12-1.25 |
|
MOOG-ES800315 | 7.72 | M15-1.5 | Female | — | — | — | — |
|
MOOG-ES800316 | 7.72 | M15-1.5 | Female | — | — | — | — |
|
MOOG-ES800248 | 7.75 | M12-1.25 | Female | Right hand | — | — | — |
|
MOOG-ES800249 | 7.75 | M12-1.25 | Female | Right hand | — | — | — |
|
MOOG-ES800485 | 7.76 | M15-1.5 | Female | — | — | — | — |
|
MOOG-ES800912 | 7.79 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800913 | 7.79 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES801064 | 7.79 | — | Female | — | — | — | — |
|
MOOG-ES801065 | 7.79 | — | Female | — | — | — | — |
|
MOOG-ES800459 | 7.81 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800460 | 7.81 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800217 | 7.82 | M14-1.5 | Female | Right hand | 0.516 | 0.629 | M12-1.5 |
|
MOOG-ES800218 | 7.82 | M14-1.5 | Female | Right hand | 0.516 | 0.629 | M12-1.5 |
|
MOOG-ES2837RL | 7.85 | .687-18L | Male | Left hand | 0.55 | 0.622 | M12-1.75 |
|
MOOG-ES800449 | 7.87 | M20-1.5 | Female | — | — | — | — |
|
MOOG-ES800450 | 7.87 | M20-1.5 | Female | — | — | — | — |
|
MOOG-ES80977 | 7.93 | M14-1.5 | Female | — | — | 0.708 | — |
|
MOOG-ES801130 | 7.96 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES801131 | 7.96 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES80287 | 7.99 | M14-1.5 | Female | Right hand | 0.5 | 0.555 | M10-1.25 |
|
MOOG-ES80288 | 7.99 | M14-1.5 | Female | Right hand | — | — | M10-1.25 |
|
MOOG-ES800589 | 7.99 | — | Female | — | — | — | — |
|
MOOG-ES800590 | 7.99 | — | Female | — | — | — | — |
|
MOOG-ES3427T | 8.00 | 1-16R | Male | — | 0.612 | 0.703 | 9/16 - 18 |
|
MOOG-ES800346 | 8.03 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES800347 | 8.03 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES800430 | 8.05 | M15-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800431 | 8.05 | M15-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2109R | 8.06 | — | — | — | — | — | — |
|
MOOG-ES2110R | 8.06 | — | — | — | — | — | — |
|
MOOG-ES800224 | 8.07 | M14-1.5 | Female | Right hand | 0.629 | 0.712 | M12-1.25 |
|
MOOG-ES800225 | 8.07 | M14-1.5 | Female | — | 0.629 | 0.712 | M12-1.25 |
|
MOOG-ES800997 | 8.07 | M18-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800998 | 8.07 | M18-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800930 | 8.07 | M15-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800931 | 8.07 | M15-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2226RL | 8.08 | .625-18R | Male | Right hand | 0.452 | 0.626 | 7/16 - 20 |
|
MOOG-ES2227RL | 8.08 | .625-18L | Male | Left hand | 0.516 | 0.626 | 7/16 - 20 |
|
MOOG-ES80626 | 8.09 | M16-1.5 | Female | Right hand | 0.531 | 0.629 | M14-1.5 |
|
MOOG-ES80627 | 8.09 | M16-1.5 | Female | Right hand | 0.531 | 0.629 | M14-1.5 |
|
MOOG-ES800473 | 8.10 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800474 | 8.10 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3003RL | 8.10 | M17-1.5R | Male | Right hand | 0.576 | 0.63 | M14-1.5-6G RH |
|
MOOG-ES3192 | 8.10 | M17-1.5 | Male | Right hand | 0.578 | — | — |
|
MOOG-ES800824 | 8.11 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800825 | 8.11 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800600 | 8.11 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800601 | 8.11 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3298L | 8.12 | — | Male | — | — | — | — |
|
MOOG-ES800670 | 8.14 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES800671 | 8.14 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES441RL | 8.15 | — | Male | — | — | — | — |
|
MOOG-ES800031 | 8.16 | M16-1.5R | Female | Right hand | 0.58 | — | M14-1.5 |
|
MOOG-ES800032 | 8.16 | M16-1.5R | Female | Right hand | 0.58 | 0.7 | M14-1.5 |
|
MOOG-ES800326 | 8.18 | M22-1.5 | Female | — | 0.72 | 0.787 | M16-1.5 |
|
MOOG-ES800327 | 8.18 | M22-1.5 | Female | — | 0.72 | 0.787 | M16-1.5 |
|
MOOG-ES3379T | 8.32 | 11/16-18R | Male | Right hand | 0.452 | 0.577 | 7/16 - 20 |
|
MOOG-ES3380T | 8.32 | 11/16-18L | Male | Left hand | 0.516 | 0.592 | 7/16 - 20 |
|
MOOG-ES2026R | 8.34 | .875-18R | Male | — | 0.715 | 0.795 | 5/8 - 18 |
|
MOOG-ES80690 | 8.38 | M16-1.5 | Female | — | 0.59 | 0.708 | M14-1.5 |
|
MOOG-ES80691 | 8.38 | M16-1.5 | Female | — | 0.59 | 0.708 | M14-1.5 |
|
MOOG-ES3462 | 8.41 | 11/16-18R | Male | Right hand | 0.48 | 0.593 | 7/16 - 20 |
|
MOOG-ES2719 | 8.43 | — | Male | — | — | — | — |
|
MOOG-ES2033RLT | 8.46 | — | Male | Right hand | — | — | — |
|
MOOG-ES800357 | 8.50 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800358 | 8.50 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800405 | 8.54 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800406 | 8.54 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3391R | 8.54 | M14-1.5R | Female | — | 0.499 | 0.551 | M10-1.25 |
|
MOOG-ES3392R | 8.54 | M14-1.5R | Female | — | 0.499 | 0.551 | M10-1.25 |
|
MOOG-ES3716 | 8.56 | M14-1.5R | Female | Right hand | 0.629 | 0.708 | M14-1.5 |
|
MOOG-ES3717 | 8.56 | M14-1.5R | Female | Right hand | 0.629 | 0.708 | M14-1.5 |
|
MOOG-ES3490 | 8.58 | M14-1.5 | Female | Right hand | 0.498 | 0.555 | M10-1.25 RH |
|
MOOG-ES3491 | 8.58 | M14-1.5R | Female | Right hand | 0.498 | 0.555 | M10-1.25 RH |
|
MOOG-ES800334 | 8.58 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES800335 | 8.58 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES800104 | 8.58 | M16-1.5 | Female | — | 0.521 | 0.59 | M12-1.25 |
|
MOOG-ES800105 | 8.58 | M16-1.5 | Female | — | 0.521 | 0.59 | M12-1.25 |
|
MOOG-ES3497 | 8.59 | 1.0-18R | Male | Right hand | — | — | M14-1.5 |
|
MOOG-ES800371 | 8.62 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES800372 | 8.62 | M16-1.56 | Female | — | — | — | — |
|
MOOG-ES800275 | 8.64 | M16-1.5 | Female | — | — | — | — |
|
MOOG-ES3547 | 8.65 | M20-1.5 | Female | Right hand | 0.576 | 0.627 | M14-1.5 |
|
MOOG-ES3548 | 8.65 | M20-1.5 | Male | Right hand | 0.576 | 0.627 | M14-1.5 |
|
MOOG-ES2000RLT | 8.66 | — | Male | — | — | — | — |
|
MOOG-ES2249RLT | 8.66 | — | Male | — | — | — | — |
|
MOOG-ES333RL | 8.66 | — | Male | — | — | — | — |
|
MOOG-ES800855 | 8.70 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800856 | 8.70 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES3545 | 8.72 | M20-1.5 | Male | Right hand | 0.687 | 0.787 | M16-1.5 |
|
MOOG-ES3546 | 8.72 | M20-1.5 | Male | Right hand | 0.687 | 0.787 | M16-1.5 |
|
MOOG-ES801075 | 8.74 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2019RLT | 8.75 | — | Male | — | — | — | — |
|
MOOG-ES406R | 8.78 | — | Male | — | — | — | — |
|
MOOG-ES403R | 8.81 | — | Male | — | — | — | — |
|
MOOG-ES427R | 8.82 | — | Male | — | — | — | — |
|
MOOG-ES800972 | 8.82 | M18-1.5 | Female | — | — | — | — |
|
MOOG-ES800973 | 8.82 | M18-1.5 | Female | — | — | — | — |
|
MOOG-ES801159 | 8.83 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES801160 | 8.83 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES2998RL | 8.86 | M18-1.5R | Male | — | 0.519 | 0.59 | M12-1.25-6G RH |
|
MOOG-ES3364T | 8.95 | M18-1.5L | Male | Left hand | 0.613 | 0.703 | M14-1.5-6G RH |
|
MOOG-ES3365T | 8.95 | M18-1.5R | Male | Right hand | 0.613 | 0.703 | M14-1.5-6G RH |
|
MOOG-ES800035 | 9.00 | M16-1.5 | Female | Right hand | 0.546 | 0.629 | M12-15 |
|
MOOG-ES800055 | 9.00 | M16-1.5 | Female | Right hand | 0.546 | 0.629 | M12-1.5 |
|
MOOG-ES800229 | 9.05 | M14-1.5 | Female | Right hand | 0.525 | 0.59 | M10-1.25 |
|
MOOG-ES800230 | 9.05 | M14-1.5 | Female | Right hand | 0.525 | 0.59 | M10-125 |
|
MOOG-ES800956 | 9.13 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800717 | 9.13 | — | Female | — | — | — | — |
|
MOOG-ES800718 | 9.14 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800093 | 9.17 | M14-1.5 | Female | — | — | 0.59 | M10-1.25 |
|
MOOG-ES800094 | 9.17 | M14-1.5 | Female | — | — | 0.59 | M10-1.25 |
|
MOOG-ES80981 | 9.17 | M14-1.5 | Female | Right hand | 20 | CONE | M12-1.75 |
|
MOOG-ES80982 | 9.20 | M14-1.5 | Female | Right hand | 20 | CONE | M12-1.75 |
|
MOOG-ES800814 | 9.27 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES800815 | 9.27 | M14-1.5 | Female | — | — | — | — |
|
MOOG-ES3539 | 9.39 | M20-1.5 | Male | Left hand | 0.653 | 0.74 | M14-1.5 |
|
MOOG-ES3474 | 9.46 | M24-1.5R | Male | Right hand | — | — | 1/2 - 20 |
|
MOOG-ES3472 | 9.51 | M24-1.5R | Male | Right hand | — | — | 1/2 - 20 |
|
MOOG-ES3473 | 9.51 | M24-1.5L | Male | Left hand | — | — | 1/2 - 20 |
|
MOOG-ES80590 | 9.52 | M18-1.5R | Male | — | 0.566 | 0.645 | M12-1.25 |
|
MOOG-ES3475 | 9.55 | M24-1.5L | Male | — | — | — | 1/2 - 20 |
|
MOOG-ES2233L | 9.60 | .875-18L | Male | Left hand | 0.675 | 0.776 | 5/8 - 18 |
|
MOOG-ES3650 | 9.64 | M14-1.5 | Female | — | 0.574 | — | M12-1.5 |
|
MOOG-ES3651 | 9.64 | M14-1.5 | Female | — | 0.574 | — | M12-1.5 |
|
MOOG-ES3681A | 9.86 | M16-1.5 RACK END | Male | — | — | — | N/A |
|
MOOG-ES801267 | 9.92 | — | Female | — | — | — | — |
|
MOOG-ES801268 | 9.92 | — | Female | — | — | — | — |
|
MOOG-ES3496 | 9.94 | 1 1/8-18R | Male | Right hand | — | — | M14-1.5 |
|
MOOG-ES800445 | 9.96 | — | — | — | — | — | — |
|
MOOG-ES800446 | 9.96 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800857 | 10.00 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800858 | 10.00 | M14-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800532 | 10.01 | — | Male | Right hand | — | — | — |
|
MOOG-ES800420 | 10.39 | — | Male | Right hand | — | — | — |
|
MOOG-ES800421 | 10.39 | — | Male | Right hand | — | — | — |
|
MOOG-ES800594 | 10.60 | M25-1.5 | Male | Right hand | — | — | — |
|
MOOG-ES3123L | 10.75 | 7/8-18L | Male | Left hand | 0.682 | — | 5/8 - 18 RH |
|
MOOG-ES80959 | 10.87 | M14-1.5 | Male | — | — | — | M12-1.75 |
|
MOOG-ES80960 | 10.87 | M14-1.5 | Male | — | — | — | M12-1.75 |
|
MOOG-ES3578 | 11.03 | M14-1.5 | — | — | 0.475 | — | M12-1.75 |
|
MOOG-ES3579 | 11.03 | M14-1.5 | — | — | 0.475 | — | M12-1.75 |
|
MOOG-ES3675 | 11.09 | M16-1.5R | Male | Right hand | 0.562 | 0.718 | M14-2 |
|
MOOG-ES3676 | 11.09 | M16-1.5R | Male | Right hand | 0.562 | 0.718 | M14-2 |
|
MOOG-ES80961 | 11.65 | M14-1.5 | Male | — | — | — | M12-1.75 |
|
MOOG-ES80962 | 11.65 | M14-1.5 | Male | — | — | — | M12-1.75 |
|
MOOG-ES3423 | 11.98 | 1 3/8-16R | Male | Right hand | 0.624 | 0.771 | M14-1.5-6G |
|
MOOG-ES3640 | 12.24 | M16-1.5 | Female | — | — | 0.629 | M12-1.5 |
|
MOOG-ES800214A | 13.58 | M18-1.5 | — | — | .566 X 2 | .645 X 2 | M12-1.25 |
|
MOOG-ES800685A | 13.98 | — | — | — | — | — | — |
|
MOOG-ES80677A | 14.37 | M18-1.5 RACK END | — | — | 0.606 | — | M14-1.5 |
|
MOOG-ES80755 | 14.78 | — | Male | Left hand | — | — | — |
|
MOOG-ES80754 | 15.00 | 1 3/8-16R | Male | Right hand | — | — | M14-1.5 |
|
MOOG-ES800647A | 15.28 | — | — | — | — | — | — |
|
MOOG-ES800881 | 15.35 | — | Male | — | — | — | — |
|
MOOG-ES800880 | 15.58 | — | Male | Left hand | — | — | — |
|
MOOG-ES3710A | 15.74 | M16-1.5 RACK END | Male | — | — | 0.629 | M12-1.5 |
|
MOOG-ES800719 | 16.61 | — | Male | Right hand | — | — | — |
|
MOOG-ES80753 | 16.63 | 7/8-16L | Male | Left hand | 0.72 | 0.809 | M16-1.5 |
|
MOOG-DS794 | 17.23 | — | — | Left hand | — | — | — |
|
MOOG-DS806 | 17.34 | — | — | Left hand | — | — | — |
|
MOOG-ES801074 | 17.76 | M16-1.5 | Female | Right hand | — | — | — |
|
MOOG-ES800745 | 19.80 | — | Male | Left hand | — | — | — |
|
MOOG-ES3250 | 20.50 | M18-1.5L | Male | — | — | — | .476 SLEEVE |
|
MOOG-ES3531 | 20.89 | M12 HOLE RACK END | Female | — | — | — | — |
|
MOOG-ES3532 | 20.89 | M12 HOLE RACK END | Female | — | — | — | — |
|
MOOG-DS911 | 23.94 | — | — | Left hand | — | — | — |
|
MOOG-DS1285 | 25.43 | — | — | Right hand | — | — | — |
|
MOOG-ES80803 | 27.80 | 1.0-16L | Male | Left hand | — | — | M18-1.5 |
|
MOOG-DS1309 | 28.86 | — | — | Left hand | — | — | — |
|
MOOG-DS1430 | 30.17 | M22-1.5 | — | Right hand | — | — | — |
|
MOOG-DS1311 | 31.06 | M22-1.5 | — | Right hand | — | — | — |
|
MOOG-DS1046 | 31.11 | M20-1.5 | — | Right hand | — | — | — |
|
MOOG-DS1460 | 32.06 | — | — | Left hand | — | — | — |
|
MOOG-DS1457 | 32.83 | — | — | Left hand | — | — | — |
|
MOOG-DS1463 | 32.96 | — | — | — | — | — | — |
|
MOOG-ES80752 | 33.71 | 1-16L | Male | — | 0.72 | 0.809 | M16-1.5 |
|
MOOG-DS1439 | 45.60 | — | — | Left hand | — | — | — |
|

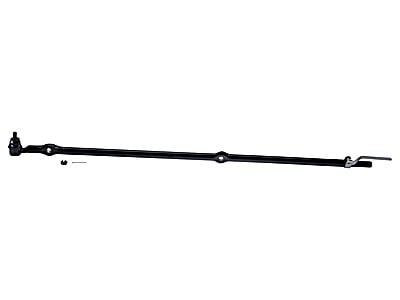

MOOG-DS1237 | 45.62 | M22-1.5 | Male | Right hand | — | — | — |
|
MOOG-DS1440 | 46.55 | — | — | Left hand | — | — | — |
|
MOOG-DS1456 | 46.90 | — | — | Left hand | — | — | — |
|
MOOG-DS1071 | 49.89 | — | — | Left hand | — | — | — |
|
MOOG-DS300044 | 50.62 | — | Male | Left hand | — | — | — |
|
MOOG-DS905 | 50.75 | — | — | Left hand | — | — | — |
|
MOOG-DS893 | 52.25 | — | — | Left hand | — | — | — |
|
MOOG-DS1163 | 54.24 | — | Female | Right hand | — | — | — |
|
MOOG-DS80444 | 59.20 | — | Female | — | — | — | — |
No parts match those measurements.
How to Measure Outer Tie Rod Ends
There are several dimensions you'll need to measure if you want to select a tie rod end that will fit your needs. Here are the important dimensions listed below with instructions and images to guide your measurements.
Tie Rod Thread Pitch
The pitch of the thread is basically the distance between the threads and can be measured in millimeters between threads or number of threads within a one inch span of threading. An outer tie rod end could have the right thread diameter but the wrong thread pitch and in those cases it will not fit correctly.
Tie Rod Diameter
The diameter of a tie rod's threaded end is pretty self explanatory, just measure the diameter of the rod end that attaches the outer rod to the inner rod. Make sure to measure on the threads and not in-between them.
Tie Rod Length and End Type
This is the length of the tie rod end from the center of the joint end to the base of the threaded end.
The end type simply denotes whether the threading of the rod end is on the outside (male) or the inside (female).
Stud Taper - Large and Small
The stud taper is determined by the diameter of the stud near the small threaded end and the diameter of the large end near the joint housing. Make sure to measure the stud above the threaded end and not directly on the threads.
