Moog Universal Inner Tie Rod Ends by Size

Find a Moog inner tie rod end with the exact dimensions you need on this database of tie rod ends by size. If you can't find an original part or just need a specific part for a custom job you can filter through the entire Moog catalog of inner tie rod ends by dimension to find what you need.

Check out our Instructions for Measuring Inner Tie Rod Ends below and compare those dimensions against our catalog of Moog inner tie rod ends.

If you have questions about fitment you can contact our customer service folks by phone or chat and you can check our learning resource page for more information about Moog tie rod ends.

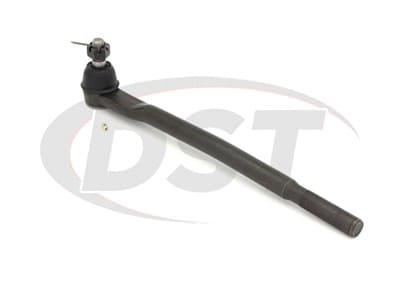

moog universal outer tie rod end

Tie Rod Specifications

Thread pitch is measured by the distance between the individual threads in millimeters or the number of threads in a one inch length of threaded rod.

Rod thread diameter is simply the diameter of the outside of the threaded rod for a male end type or the inside diameter of a female end type.

Thread direction differentiates right-handed thread (R) from left-handed thread (L)

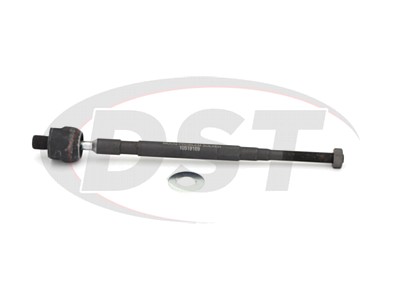

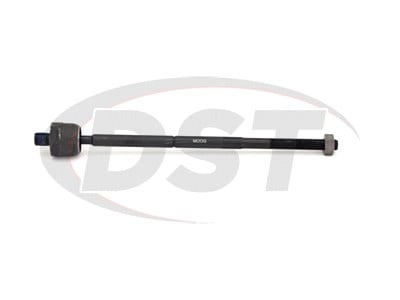

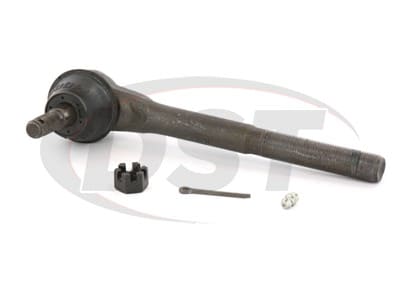

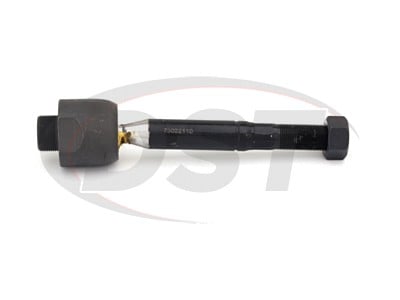

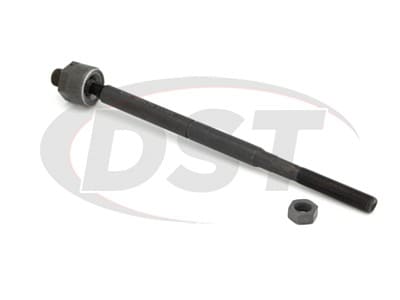

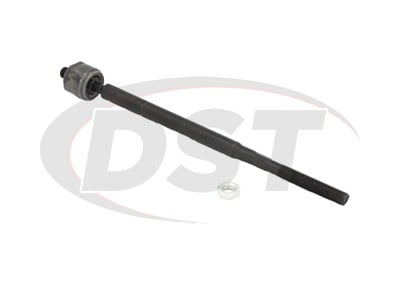

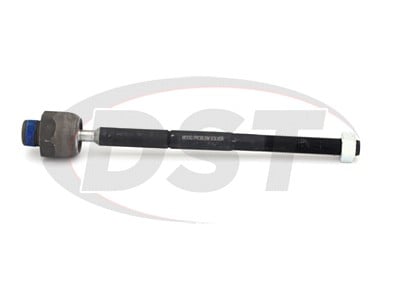

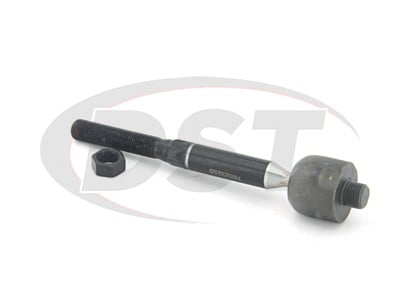

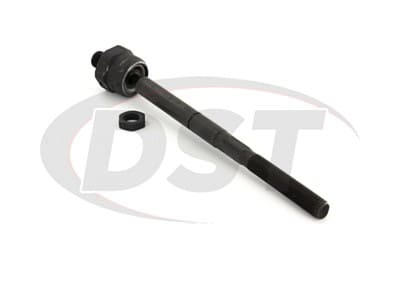

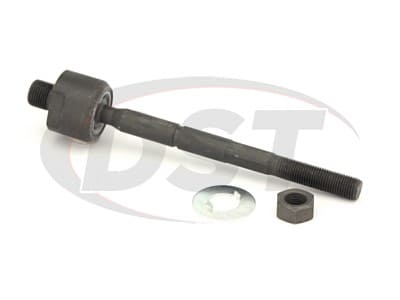

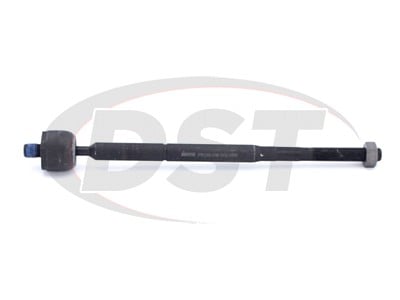

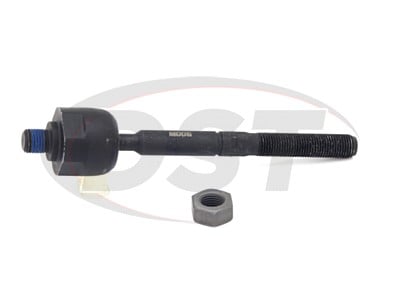

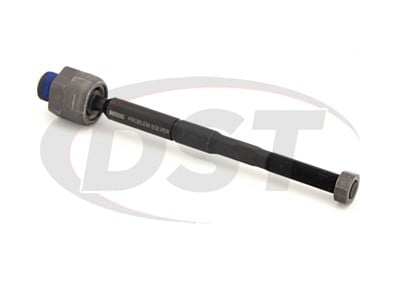

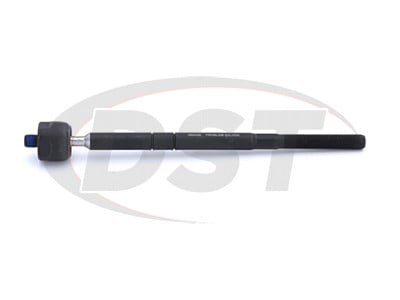

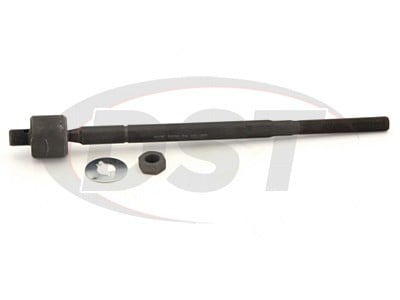

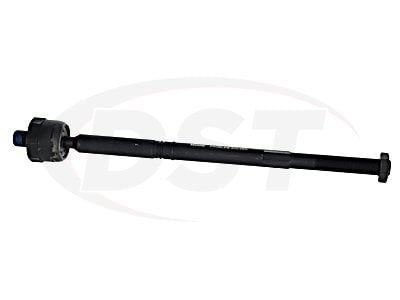

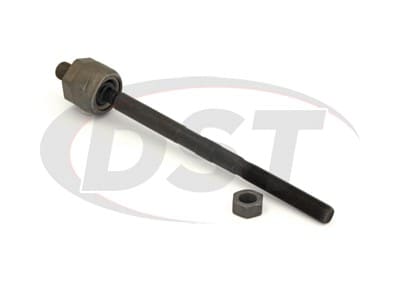

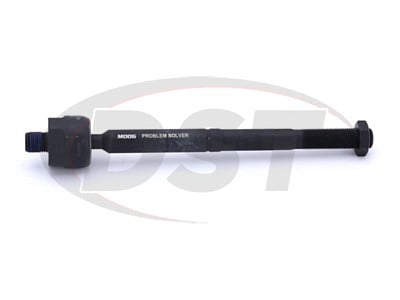

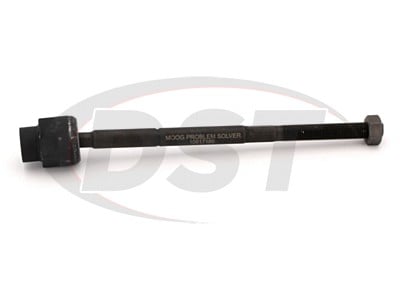

Moog Inner Tie Rod Dimension Chart

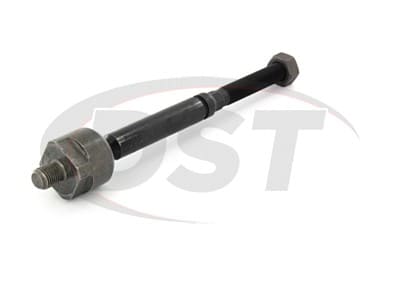

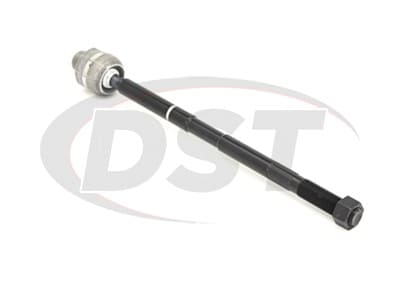

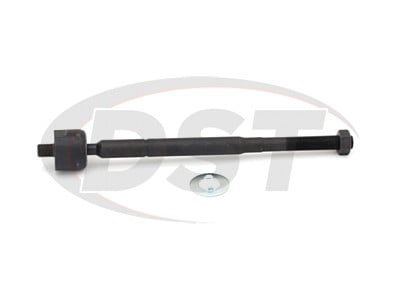

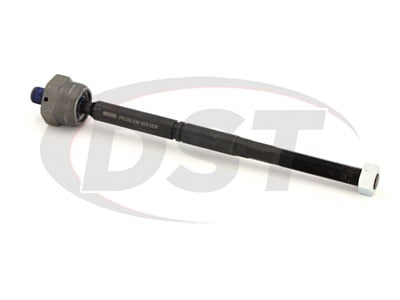

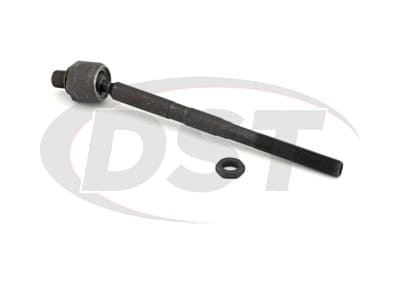

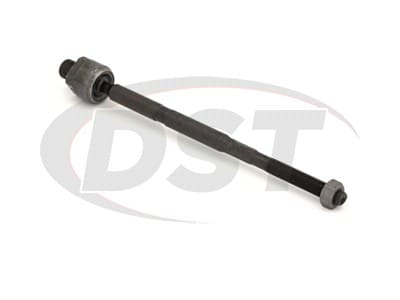

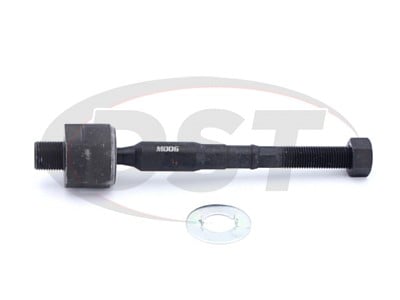

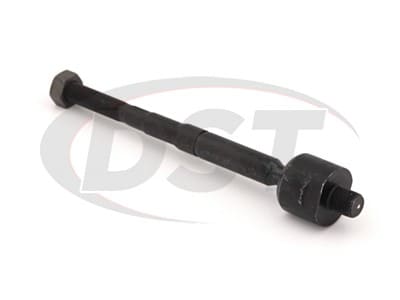

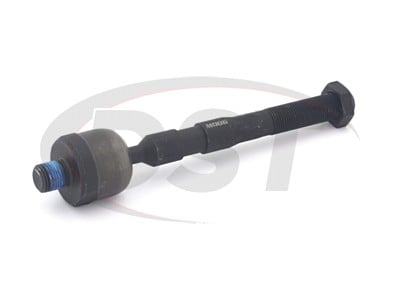

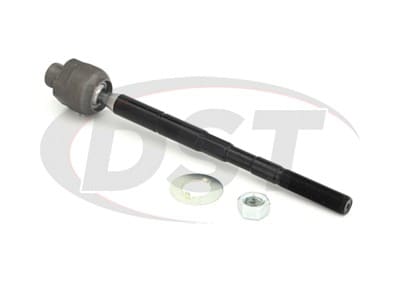

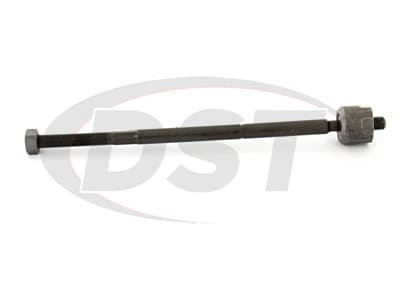

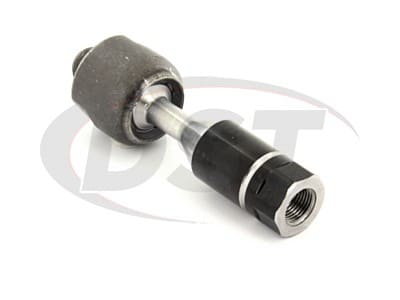

Image Part Number Length Outer End Thread Dimensions Outer End Thread Type Steering Rack End Thread Dimensions Steering Rack End Thread Type

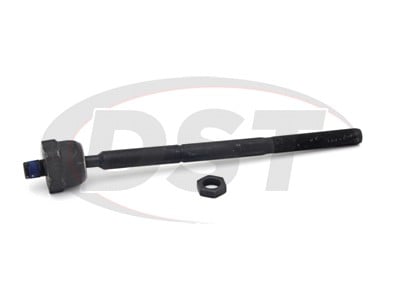

Inner Tie Rod MOOG-EV283 4.62 M14-1.5R Male M12-1.25R Male
Inner Tie Rod MOOG-EV440 5.03 M14-1.5 Female M16-1.5 Male
Inner Tie Rod MOOG-EV417 5.32 M14-1.5 Female M18-1.5 Male

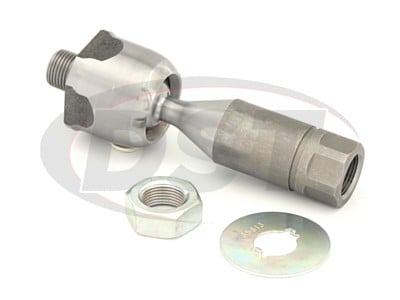

Inner Tie Rod MOOG-EV433 5.78 M20-1.5-2 Female M18-1.5-2 Male
Inner Tie Rod MOOG-EV212 6.14 M12-1.25R Male M12-1.25R Male

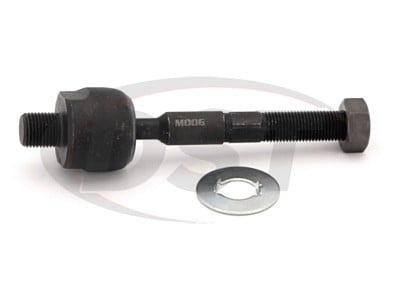

Inner Tie Rod MOOG-EV415 6.29 M14-1.5 Male M16-1.5 Male

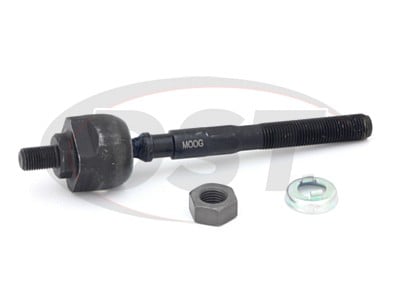

Inner Tie Rod MOOG-EV367 6.3 M14-1.5-6G RH Male M12-1.25-6H RH Male
Inner Tie Rod MOOG-EV423 6.49 M14-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV366 6.54 M14-1.5 Male M16-1.6 Male
Inner Tie Rod MOOG-EV217 7.09 M14-1.5 Male M12-1.25R Male
Inner Tie Rod MOOG-EV388 7.25 M14-1.5 Male M18-1.5 Male
Inner Tie Rod MOOG-EV389 7.25 M18-1.5 Male M18-1.5 Male
Inner Tie Rod MOOG-EV287 7.32 M14-1.5 Male M18-1.00R Male
Inner Tie Rod MOOG-EV428 7.39 M14-P1.5 Male M16-P1.5 Male
Inner Tie Rod MOOG-EV296 7.54 M14-1.5R Male M12-1.25 Male
Inner Tie Rod MOOG-EV167 7.55 M14-1.5R Male M14-1.50R Male
Inner Tie Rod MOOG-EV330 7.55 M14-2 Male M14-1.5 Male
Inner Tie Rod MOOG-EV299 7.59 M14-1.5R Male M12-1.25R Male
Inner Tie Rod MOOG-EV368 7.59 M14-1.5-6G RH Male M12-1.25-6G RH Male
Inner Tie Rod MOOG-EV243 8 M14-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV121 8.12 M14-1.5R Male M14-1.50R Female

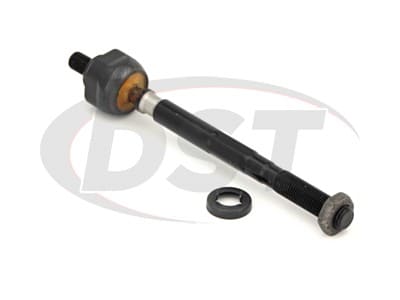

Inner Tie Rod MOOG-EV414 8.54 M14-1.5 Male M12-1.25 Male
Inner Tie Rod MOOG-EV374 8.56 M14-1.5 RH Male M18-1.5 RH Male
Inner Tie Rod MOOG-EV410 8.66 M12-1.25 Male M14-1.5 Male
Inner Tie Rod MOOG-EV300 8.69 M14-1.5 Male M18-1.00R Male
Inner Tie Rod MOOG-EV233 8.8 M14-1.5 Male M16-1.00R Male
Inner Tie Rod MOOG-EV323 8.81 M14-1.5-6G RH Male M14-1.5-6G RH Male
Inner Tie Rod MOOG-EV179 8.85 M14-1.5R Male M14-1.50R Male
Inner Tie Rod MOOG-EV454 8.85 M14-1.5-6G RH Male M16-1.5-6G Male
Inner Tie Rod MOOG-EV452 8.85 M14-1.5-6G RH Male M16-1.5-6G RH Male
Inner Tie Rod MOOG-EV331 8.86 M14-1.5-6G RH Male M18-1.5-6G RH Male

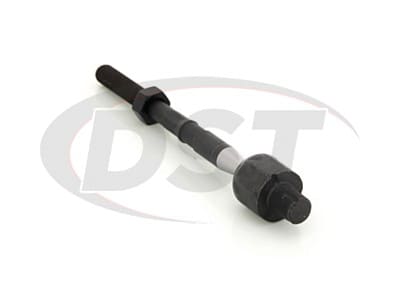

Inner Tie Rod MOOG-EV441 8.89 M14-1.5 Male M18-1.5 Male
Inner Tie Rod MOOG-EV432 8.93 M16-1.5 Male M24-1.5 Male
Inner Tie Rod MOOG-EV307 9.1 M14-1.5-6G RH Male M14-1.5-6G RH Male
Inner Tie Rod MOOG-EV244 9.2 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV238 9.22 M12-1.25R Male M14-1.50R Male

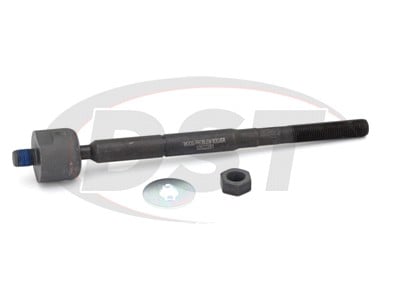

Inner Tie Rod MOOG-EV409 9.52 M15-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV449 9.52 M15-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV383 9.52 M14-1.5 Male M16-1.0 Male
Inner Tie Rod MOOG-EV467 9.59 M14-1.5 Male M16-1 Male
Inner Tie Rod MOOG-EV199 9.69 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV453 9.7 M14-1.5-6G RH Male M16-1.5-6G RH Male
Inner Tie Rod MOOG-EV198 9.71 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV177 9.73 M14-1.5R Male M16-1.50R Female
Inner Tie Rod MOOG-EV346 9.76 M14-1.5-2 Male M16-1.0-2 Male
Inner Tie Rod MOOG-EV186 9.78 M14-1.5RI Male M18-1.5R Male
Inner Tie Rod MOOG-EV192 9.94 M14-1.5R Male M14-1.50R Male
Inner Tie Rod MOOG-EV350 9.99 M14-1.5-6G RH Male M16-1.5-6G Male
Inner Tie Rod MOOG-EV420 10 M14-1.5 RH Male M16-1.0 RH Male
Inner Tie Rod MOOG-EV345 10 M14-1.5 RH Male M16-1.0 RH Male
Inner Tie Rod MOOG-ES3398 10.18 M15-1.5-6G RH Male M15-1.5-6G RH Male
Inner Tie Rod MOOG-EV255 10.18 M14-1.5 Male M16-1 Male
Inner Tie Rod MOOG-EV437 10.27 M14-1.5-6G Male M16-1.5-6G Male
Inner Tie Rod MOOG-EV191 10.31 M14-1.5R Male M14-1.5 Male
Inner Tie Rod MOOG-EV348 10.31 M14-1.5-2 Male M16-1.0-2 Male
Inner Tie Rod MOOG-EV288 10.48 M12-1.25 Male M16-1.5R Male
Inner Tie Rod MOOG-EV268 10.52 M12-1.25R Male M14-1.50R Male
Inner Tie Rod MOOG-EV408 10.62 M14-1.5 Male M14-1.5 Female
Inner Tie Rod MOOG-EV284 10.63 M12-1.25 Male M14-1.50R Male
Inner Tie Rod MOOG-EV293 10.65 M14-2.0 Male M14-1.50R Male
Inner Tie Rod MOOG-EV214 10.7 M14-1.5 Male M16-1.50R Male
Inner Tie Rod MOOG-EV225 10.7 M12-1.25 Male M16-1.50R Male
Inner Tie Rod MOOG-EV170 10.71 M14-1.5R Male M14-1.50R Male
Inner Tie Rod MOOG-EV125 10.75 M12-1.25 Male M14-1.50R Male

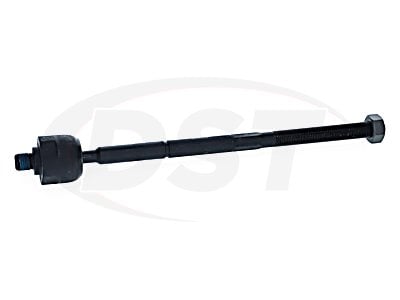

Inner Tie Rod MOOG-EV404 10.78 M14-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV317 10.78 M14-1.5-6G RH Male M16-1.5 Male
Inner Tie Rod MOOG-EV252 10.83 M15-1.5R Male M14-1.50R Female
Inner Tie Rod MOOG-EV130 10.84 M14-2.0R Male M14-1.50R Male
Inner Tie Rod MOOG-EV401 10.87 M12-1.25 Male M14-1.5 Male
Inner Tie Rod MOOG-EV405 10.87 M14-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV189 10.9 M14-1.5R Male M14-1.50R Male
Inner Tie Rod MOOG-EV129 10.98 M14-2.0R Male M20-1.50R Female
Inner Tie Rod MOOG-EV171 10.98 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV411 11.02 M14-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV112 11.06 .562-18R Male 15/16 Inch-20R Female
Inner Tie Rod MOOG-EV194 11.09 M12-1.25 Male M12-1.25R Male
Inner Tie Rod MOOG-EV289 11.09 M12-1.25-6G RH Male M16-1.5-6H RH Male
Inner Tie Rod MOOG-EV246 11.1 M14-1.5 Male M14-1.5R Male
Inner Tie Rod MOOG-EV344 11.11 M14-1.5 Male M16-1.0 Male
Inner Tie Rod MOOG-EV169 11.16 M12-1.25R Male M16-1.00R Male
Inner Tie Rod MOOG-EV285 11.16 M14-1.5R Male M16-1.00R Male
Inner Tie Rod MOOG-EV380 11.22 M12-1.25-6G Male M14-1.5-6G Male

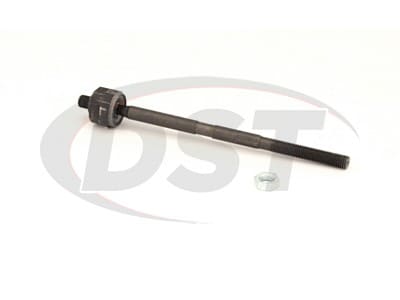

Inner Tie Rod MOOG-EV326 11.25 M14-2.0 Male M14-1.5-6G Male
Inner Tie Rod MOOG-EV269 11.25 M12-1.25R Male M14-1.50R Female
Inner Tie Rod MOOG-EV175 11.27 M14-2R Male M20-1.50R Female
Inner Tie Rod MOOG-EV256 11.28 M14-1.5 Male M16-1 Male
Inner Tie Rod MOOG-EV247 11.34 M14-1.5 Male M14-1.5R Male
Inner Tie Rod MOOG-EV347 11.37 M14-1.5-2 Male M16-1.0-2 Male
Inner Tie Rod MOOG-EV207 11.38 M14-1.5 Male M16-1.5R Female
Inner Tie Rod MOOG-EV183 11.41 M12-1.25R Male M14-1.50R Male
Inner Tie Rod MOOG-EV157 11.42 M12-1.25R Male M12-1.25R Male
Inner Tie Rod MOOG-EV292 11.44 M14-2.0 Male M16-1.5R Male
Inner Tie Rod MOOG-EV190 11.46 M14-1.5R Male M14-1.50R Male

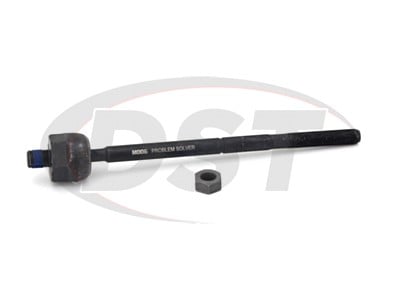

Inner Tie Rod MOOG-EV455 11.46 M14-1.5-6G RH Male M16-1.5-6G RH Male
Inner Tie Rod MOOG-EV257 11.47 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV223 11.48 M14-1.5R Male M16-1.50R Male
Inner Tie Rod MOOG-EV196 11.49 M12-1.25 Male M16-1.50R Male
Inner Tie Rod MOOG-EV322 11.52 M12-1.25-6G RH Male M16-1.0-6G RH Male
Inner Tie Rod MOOG-EV117 11.55 .562-18R Male 15/16 Inch-20R Female
Inner Tie Rod MOOG-EV403 11.56 M14-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV431 11.65 M12-1.25 Male M16-1.5 Male
Inner Tie Rod MOOG-EV226 11.66 M14-1.5R Male M16-1.50R Male
Inner Tie Rod MOOG-EV280 11.66 M12-1.25 Male M14-1.5R Male
Inner Tie Rod MOOG-EV209 11.68 M14-1.5R Male M14-1.50R Male
Inner Tie Rod MOOG-EV216 11.68 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV159 11.71 M12-1.25R Male M12-1.25R Male
Inner Tie Rod MOOG-EV382 11.71 M12-1.25 Male M16-1.5 Female
Inner Tie Rod MOOG-EV161 11.73 M14-1.5R Male M18-1.50R Female
Inner Tie Rod MOOG-EV400 11.76 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV422 11.77 M14-1.5-6G RH Male M16-1.5-6G RH Male
Inner Tie Rod MOOG-EV222 11.8 M14-1.5R Male M16-1.5R Male
Inner Tie Rod MOOG-EV208 11.85 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV349 11.85 M14-1.5-2 Male M16-1.0-2 Male

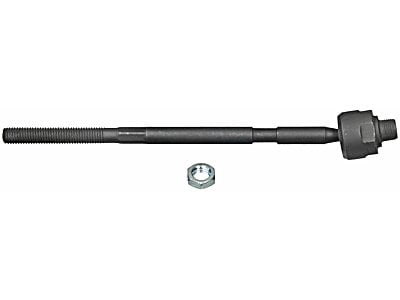

Inner Tie Rod MOOG-EV274 11.87 M14-2.0 Male M18-1.50R Male

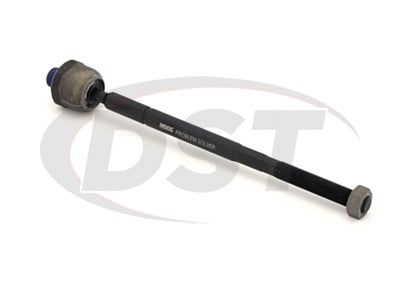

Inner Tie Rod MOOG-EV343 11.92 M14-1.5 Male M18-1.5 Male
Inner Tie Rod MOOG-EV436 11.92 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV310 11.96 M12-1.25-6G RH Male M12-1.25-6G RH Male
Inner Tie Rod MOOG-EV398 11.97 M14-1.5 Male 15/16-20R Female
Inner Tie Rod MOOG-EV200 11.97 M14-1.5 Male M16-1.50R Female

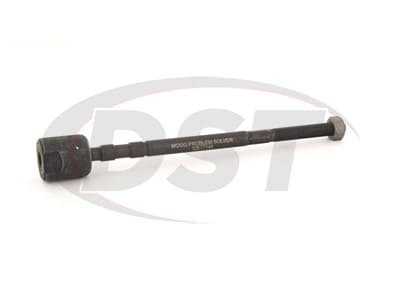

Inner Tie Rod MOOG-EV128 12.01 M14-1.5R Male M14-1.50R Male
Inner Tie Rod MOOG-EV332 12.01 M14-2.0-6G RH Male M14-1.5 RH Male
Inner Tie Rod MOOG-EV228 12.03 M14-1.5R Male M18-1.50R Male
Inner Tie Rod MOOG-EV118 12.06 M12-1.25R Male M22-1.50R Male
Inner Tie Rod MOOG-EV264 12.06 M12-1.25R Male M14-1.50R Male
Inner Tie Rod MOOG-EV120 12.06 M12-1.25R Male 27/32 Inch-20R Female

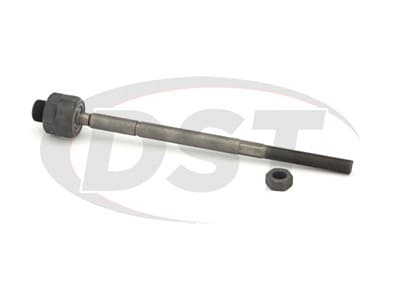

Inner Tie Rod MOOG-EV370 12.07 M14-1.5R RH Male M22-1.50R Male
Inner Tie Rod MOOG-EV254 12.09 M12-1.25R Male M17-1.00R Male
Inner Tie Rod MOOG-EV126 12.15 M14-1.5R Male M14-1.50R Male
Inner Tie Rod MOOG-EV180 12.15 M12-1.25 Male M12-1.25R Male
Inner Tie Rod MOOG-EV456 12.15 M16-1.5-6G RH Male M16-1.5-6G RH Male

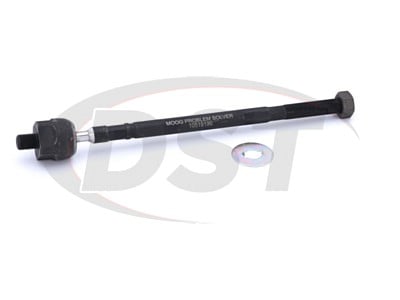

Inner Tie Rod MOOG-EV473 12.15 M14-1.5 RH Male M14-1.5 RH Male
Inner Tie Rod MOOG-EV304 12.17 M14-1.5-6G RH Male M14-1.5-6G RH Male
Inner Tie Rod MOOG-EV115 12.18 M14-1.5R Male 15/16 Inch-20R Female
Inner Tie Rod MOOG-EV116 12.2 M14-1.5R Male M14-1.50R Female
Inner Tie Rod MOOG-EV364 12.2 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV365 12.21 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV324 12.22 M14-1.5-6G RH Male M14-1.5 RH Female
Inner Tie Rod MOOG-ES3488 12.27 M14-1.5R Male M18-1.50R Male
Inner Tie Rod MOOG-EV278 12.3 M14-1.5 Male M12-1.25R Male
Inner Tie Rod MOOG-EV442 12.35 M15-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV354 12.35 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV215 12.39 M12-1.25R Male M16-1.50R Male
Inner Tie Rod MOOG-EV178 12.4 M12-1.25R Male M14-1.50R Male
Inner Tie Rod MOOG-EV381 12.4 M14-1.5 Male M14-1.5 Female
Inner Tie Rod MOOG-EV197 12.43 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV206 12.43 M14-1.5 Male M16-1.50R Male
Inner Tie Rod MOOG-EV188 12.55 M12-1.25R Male M14-1.50R Male
Inner Tie Rod MOOG-EV399 12.56 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV203 12.56 M12-1.25R Male M14-1.50R Male
Inner Tie Rod MOOG-EV329 12.56 M12-1.25-6G RH Male M17-1.0-6G RH Male

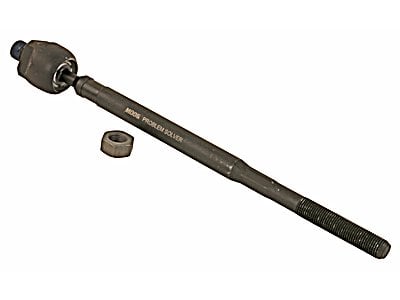

Inner Tie Rod MOOG-EV427 12.59 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV392 12.66 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV372 12.67 M14-1.5 Male M16-1.5 Male

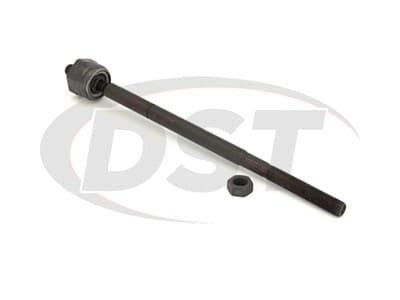

Inner Tie Rod MOOG-EV406 12.7 M15-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV229 12.77 M14-1.5R Male M18-1.50R Male

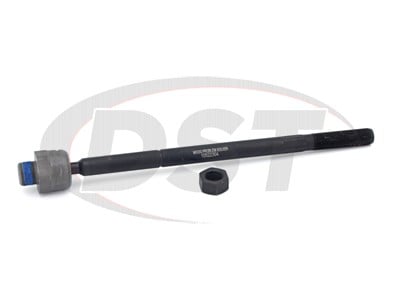

Inner Tie Rod MOOG-EV407 12.81 M18-1.5 Male M24-1.5 Male
Inner Tie Rod MOOG-EV412 12.81 M14-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV279 12.81 M13-1.25 Male M16-1.00R Male
Inner Tie Rod MOOG-EV261 12.85 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV295 12.86 M14-1.5 RH Male M18-1.5 RH Male
Inner Tie Rod MOOG-EV362 12.89 M14-1.5-6G RH Male M14-1.5-6G RH Male
Inner Tie Rod MOOG-EV240 12.9 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV458 12.94 M14-1.5-6G RH Male M16-1.0-6G Male
Inner Tie Rod MOOG-EV352 12.95 M14-1.5 RH Male M16-1.0 RH Male
Inner Tie Rod MOOG-EV303 13.02 M14-1.5-6G RH Male M14-1.5-6G RH Male
Inner Tie Rod MOOG-EV297 13.03 M12-1.25-6G RH Male M16-1.5 RH Male
Inner Tie Rod MOOG-EV239 13.05 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV318 13.05 M16-1.5-6G Male 15/16-20R Female
Inner Tie Rod MOOG-EV236 13.06 M14-1.5-2 Male M16-1.50R Male

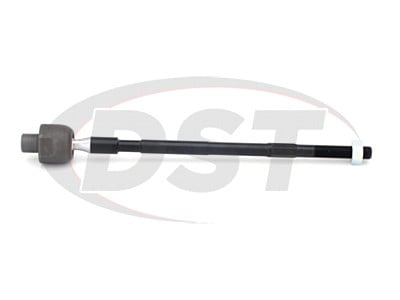

Inner Tie Rod MOOG-EV396 13.06 M14-1.5-2 Male M20-1.5-2 Male
Inner Tie Rod MOOG-EV426 13.13 M14-1.5-6G RH Male M16-1.5-6G RH Male

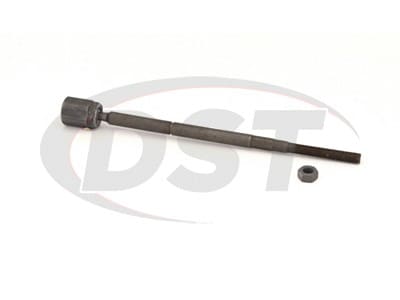

Inner Tie Rod MOOG-EV265 13.14 M12-1.25R Male M14-1.50R Female
Inner Tie Rod MOOG-EV301 13.17 M15-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV154 13.21 M14-1.5R Male M22-1.50R Female
Inner Tie Rod MOOG-EV272 13.24 M14-1.5R Male M14-1.50R Male
Inner Tie Rod MOOG-EV369 13.24 M14-1.5 RH Male M16-1.5 RH Male
Inner Tie Rod MOOG-EV425 13.25 M14-1.5-6G RH Male M14-1.5-6G RH Male

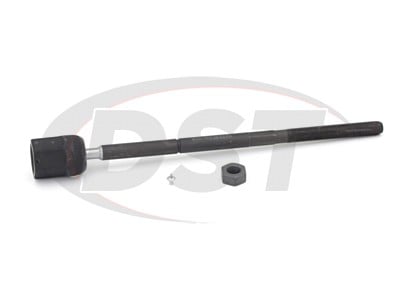

Inner Tie Rod MOOG-EV127 13.27 M14-1.5R Male 15/16 Inch-20R Female
Inner Tie Rod MOOG-EV260 13.29 M14-1.5-6G RH Male M18-1.50R Male
Inner Tie Rod MOOG-EV266 13.34 M12-1.25R Male M16-1.00R Male
Inner Tie Rod MOOG-EV276 13.34 M12-1.25R Male M16-1.00R Male
Inner Tie Rod MOOG-EV328 13.36 M14-1.5 Male M18-1.5 Male

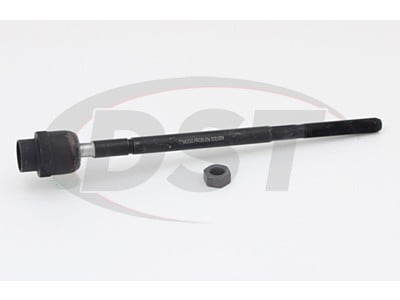

Inner Tie Rod MOOG-EV195 13.46 M14-1.5 Male M14-1.50R Female
Inner Tie Rod MOOG-EV421 13.49 M14-1.5-6G RH Male M18-1.5-6G Male
Inner Tie Rod MOOG-EV357 13.53 M14-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-ES3489 13.54 M14-1.5 Male M18-1.5 Male

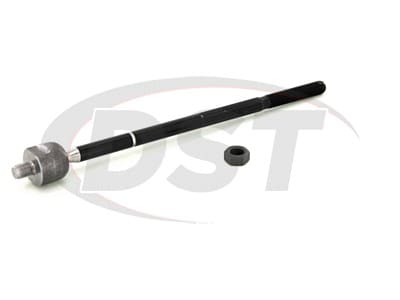

Inner Tie Rod MOOG-EV351 13.56 M15-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV302 13.63 M14-1.5-6G RH Male M14-1.5-6G Male
Inner Tie Rod MOOG-EV319 13.86 M16-1.5 RH Male M14-1.5 Male
Inner Tie Rod MOOG-EV320 13.86 M16-1.5 RH Male M14-1.5 RH Male
Inner Tie Rod MOOG-EV424 13.98 M16-1.5-6G Male M14-1.5-6G Male
Inner Tie Rod MOOG-EV270 13.98 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV373 14.06 M12-1.25 RH Male M18-1.5 RH Male
Inner Tie Rod MOOG-EV286 14.08 M14-1.5 Male M14-1.50R Male
Inner Tie Rod MOOG-EV418 14.09 M14-2.0-6G RH Male M14-1.5-6G RH Male

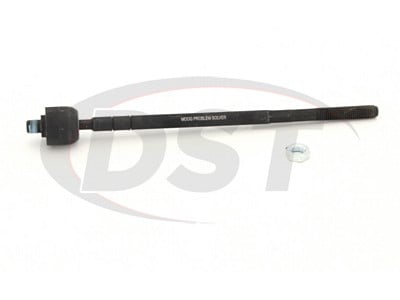

Inner Tie Rod MOOG-EV419 14.1 M14-2.0-6G RH Male M14-1.5-6G RH Male
Inner Tie Rod MOOG-EV461 14.2 M14-2.0-6G RH Male M14-1.5-6G Male
Inner Tie Rod MOOG-EV447 14.37 M15-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV271 14.38 M14-1.5 Male M22-1.50R Female
Inner Tie Rod MOOG-EV315 14.74 M14-1.5 Male 15/16 Inch-20R Female
Inner Tie Rod MOOG-EV397 14.78 M14-1.5-6G RH Male M14-1.5-6G Male
Inner Tie Rod MOOG-EV219 15 M14-1.5 Male M12-1.25R Male
Inner Tie Rod MOOG-EV460 15.11 M16-1.5 Male M16-1.5 Male
Inner Tie Rod MOOG-EV379 15.33 M14-1.5 Male M14-1.5 Male
Inner Tie Rod MOOG-EV378 15.45 M14-1.5 Male M22-1.5 Female

How to Measure Inner Tie Rod Ends

There are a few measurements that you will need to find the correct inner tie rod end for your purposes. You can measure the length of the inner rod to get you close to original spec but in most applications the overall length of the connected inner and outer tie rod will be more important.

The most important measurements are the diameter of the threaded rod end and the thread pitch or the spacing of the threads. If you get these wrong then your tie rod is not going to fit. You will need to separately measure the diameter and thread pitch for 1) the threaded end that connects to the steering rack and 2) the end that connets to the outer tie rod end.

The dimensions for tie rod ends is displayed as such:

  • (Metric) M##-##(R/L) "M" for Metric Measurement, Thread Diameter, Thread Pitch, Right or Left Handed Thread
  • (English) ##-##(R/L) Thread Diameter, Thread Pitch, Right or Left Handed Thread

Thread Pitch

tie rod thread pitch mm
tie rod thread pitch inches

Rod Diameter

measure tie rod thread female
tie rod thread diameter inches
