Moog Coil Springs by Size

If you haven't been able to find the right coil springs for your vehicle check out this Moog Coil Spring Chart that lists all of the specifications you need to find the right suspension springs.

Sagging coil springs can affect your ride height as well as your handling ability and this only gets worse the more they age. Depending on the state of your OE coil springs you could increase your ride height significantly by simply replacing them with new springs. If you're looking for dual rate coil springs that can cut down on body roll when taking corners at high speed in your car, or heavy duty coil springs to increase the carrying or towing ability of your truck or commercial vehicle, this list will have something for you.

This moog coil spring catalog gives nine specific dimensions for each coil spring so you can find exactly what you're looking for. The following categories define the different characteristics and dimensions of suspension coil springs to help you decide which set is the best for your application.

- End Type
- Free Height
- Installed Height
- Inner Diameter
- Bar Diameter
- Coil Spring Rate
- Load
- Coil Spring Type

If you need any help navigating the parts please contact our customer service specialists who can help you find the coil springs you're looking for.

Moog Coil Spring Dimension Chart

Part Number	Front / Rear	Free Height in	Installed Height in	Inner Dia in	Outside Dia in	Bar Dia in	Spring Rate lb/in	Load lb	End 1	End 2	Spring Type
MOOG-81420	Front	—	9	—	7.26	0.63	—	—	—	—	Constant Rate
MOOG-81426	Front	—	8.5	—	6.53	0.53	—	—	—	—	—
MOOG-81488	Front	—	8.5	—	6.55	0.61	—	—	—	—	—
MOOG-81490	Front	—	8.5	—	—	—	—	—	—	—	Constant Rate
MOOG-81492	Front	—	8.5	—	6.49	0.58	—	—	—	—	Constant Rate
MOOG-81494	Front	—	8.5	—	6.49	0.58	—	—	—	—	Constant Rate
MOOG-81500	Front	—	8.5	—	6.61	0.64	—	—	—	—	Constant Rate
MOOG-81618	Front	—	8.5	—	4.448	0.468	—	—	—	—	—
MOOG-81692	Front	—	8.5	—	—	0.609	—	—	—	—	—
MOOG-81697	Rear	—	9	—	—	0.656	—	—	—	—	Constant Rate
MOOG-7394	Front	—	—	—	5.91	0.94	—	—	Squared	Tangential	Constant Rate
MOOG-80919	Rear	—	9	5.3	5.3	—	—	—	Pigtail	Pigtail	Constant Rate
MOOG-80972	Front	—	7	5.5	6.66	0.57	140	—	Pigtail	Squared	Constant Rate
MOOG-81126	Front	—	3.88	5.58	—	0.58	140	—	Pigtail	Squared	Constant Rate
MOOG-81182	Front	—	—	—	—	—	—	—	Tangential	Tangential	Constant Rate
MOOG-81184	Front	—	—	4.84	—	0.81	692	—	Tangential	Tangential	Constant Rate
MOOG-81186	Front	—	—	—	—	—	—	—	Tangential	Tangential	Constant Rate
MOOG-81188	Front	—	—	—	—	—	—	—	Pigtail	Pigtail	Constant Rate
MOOG-81190	Front	—	—	3.77	—	0.75	595	—	Pigtail	Pigtail	Constant Rate
MOOG-81466	Front	—	10	—	4.02	—	—	—	Squared	Tangential	Constant Rate
MOOG-8228	Front	—	11.5	4	6	—	—	—	Pigtail	Tangential	Constant Rate
MOOG-81137	Rear	10.04	7.5	—	5.14	0.55	—	—	—	—	Constant Rate
MOOG-81141	Rear	10.33	7.5	—	5.71	0.56	—	—	—	—	Constant Rate
MOOG-81095	Rear	10.372	4.599	—	4.83	0.593	—	—	Pigtail	Squared	Constant Rate
MOOG-81715	Rear	10.534	8	—	—	0.578	—	—	—	—	Constant Rate
MOOG-81381	Rear	10.6	6.5	—	5.24	0.47	—	—	—	—	—
MOOG-81646	Rear	10.63	7.25	—	—	0.531	—	—	—	—	Constant Rate
MOOG-81713	Rear	10.85	8	—	—	0.578	—	—	—	—	Constant Rate
MOOG-80659	Rear	10.93	7	5.57	6.73	0.57	194	763	Pigtail	Pigtail	Constant Rate
MOOG-81691	Rear	11.04	8	—	—	0.531	—	—	—	—	Constant Rate
MOOG-81057	Rear	11.1	2.62	5.98	7.24	0.63	195	—	Pigtail	Pigtail	Constant Rate
MOOG-81682	Rear	11.188	8.5	—	—	0.5	—	—	—	—	Constant Rate
MOOG-80555	Rear	11.27	8.5	4.04	5.23	0.59	331	919	Squared	Tangential	Constant Rate
MOOG-3229	Rear	11.28	8	5.6	6.86	0.62	200	653	Pigtail	Pigtail	Constant Rate
MOOG-81647	Rear	11.314	7.5	—	—	0.562	—	—	—	—	Constant Rate
MOOG-81153	Rear	11.375	5.207	—	3.93	0.484	—	—	—	—	Constant Rate
MOOG-80657	Rear	11.5	9	4.81	6.14	0.65	400	974	Squared	Tangential	Constant Rate
MOOG-81655	Rear	11.625	8	—	—	0.609	—	—	—	—	Constant Rate
MOOG-81707	Rear	11.625	8	—	—	0.468	—	—	—	—	Constant Rate
MOOG-CC850	Front	11.65	8.75	4.07	5.55	0.75	605	1825	Squared	Tangential	Variable Rate
MOOG-81640	Rear	11.878	8.5	—	—	0.484	—	—	—	—	Constant Rate
MOOG-81711	Rear	11.885	8	—	—	0.515	—	—	—	—	Constant Rate
MOOG-81240	Front	11.965	5.323	—	—	0.578	—	—	Squared	Tangential	Constant Rate
MOOG-81039	Rear	12	9	3.33	4.61	0.64	512	1536	Tangential	Tangential	Constant Rate
MOOG-81681	Rear	12	8.5	—	—	0.484	—	—	—	—	Constant Rate
MOOG-81405	Rear	12.01	5.5	—	3.99	0.59	—	—	—	—	—
MOOG-80670	Front	12.04	7	5.3	6.42	0.56	180	873	Pigtail	Tangential	Constant Rate
MOOG-81625	Rear	12.098	9	—	—	0.484	—	—	—	—	—
MOOG-3227	Rear	12.11	8	5.6	6.86	0.62	200	821	Pigtail	Pigtail	Constant Rate
MOOG-81591	Rear	12.129	9	—	5.122	0.546	—	—	—	—	Constant Rate
MOOG-81709	Rear	12.214	8	—	—	0.515	—	—	—	—	Constant Rate
MOOG-CC81065	Rear	12.237	3.185	—	5.28	0.484	—	—	Pigtail	Pigtail	Variable Rate
MOOG-81422	Front	12.3	7.5	—	6.12	0.55	—	—	—	—	Constant Rate
MOOG-81378	Front	12.36	8.5	—	4.71	—	—	—	—	—	—
MOOG-81589	Rear	12.373	9	—	5.122	0.546	—	—	—	—	Constant Rate
MOOG-81600	Front	12.375	6.5	—	6.196	0.546	—	—	—	—	—
MOOG-81680	Rear	12.375	8.5	—	—	0.484	—	—	—	—	Constant Rate
MOOG-CC81367	Rear	12.375	3.483	—	5.34	0.515	—	—	Pigtail	Pigtail	Variable Rate
MOOG-81659	Rear	12.424	9	—	—	0.64	—	—	—	—	—
MOOG-8621	Rear	12.46	9.5	4.02	5.08	0.53	196	580	Squared	Pigtail	Constant Rate
MOOG-81598	Front	12.487	7	—	7.334	0.584	—	—	—	—	Constant Rate
MOOG-81638	Rear	12.528	8.5	—	—	0.547	—	—	—	—	Constant Rate
MOOG-6102	Front	12.56	10	3.68	5.3	0.81	1015	2600	Tangential	Pigtail	Constant Rate
MOOG-81387	Rear	12.58	9	—	5.11	0.64	—	—	—	—	Constant Rate
MOOG-5385	Rear	12.6	9	5.57	6.75	0.59	168	602.3	Pigtail	Pigtail	Constant Rate
MOOG-7170	Front	12.6	10.5	4	5.62	0.81	845	1815	Squared	Tangential	Constant Rate
MOOG-CC501	Rear	12.63	8	5.53	6.75	0.61	175	810	Pigtail	Pigtail	Variable Rate
MOOG-81693	Rear	12.633	9	—	—	0.484	—	—	—	—	Constant Rate
MOOG-81624	Front	12.771	8	—	—	0.578	—	—	—	—	—
MOOG-81200	Front	12.7812	6.5	—	5.52	0.75	—	—	Squared	Tangential	Constant Rate
MOOG-81587	Rear	12.811	9	—	5.144	0.562	—	—	—	—	Constant Rate
MOOG-81628	Rear	12.814	8.5	—	—	0.656	—	—	—	—	—
MOOG-80871	Rear	12.84	9	4.7	5.87	0.57	188	723	Pigtail	Pigtail	Constant Rate
MOOG-81699	Rear	12.844	9	—	—	0.468	—	—	—	—	Constant Rate
MOOG-81712	Front	12.845	7	—	—	0.531	—	—	—	—	Constant Rate
MOOG-81393	Rear	12.86	8.5	—	4.98	0.58	—	—	—	—	Constant Rate
MOOG-81385	Rear	12.9	9	—	5.11	0.64	—	—	—	—	Constant Rate
MOOG-81489	Rear	12.91	8.5	—	4.3	0.47	—	—	—	—	—
MOOG-81165	Rear	12.93	9.5	—	4.08	0.47	—	—	—	—	—
MOOG-81232	Front	12.9375	3.284	—	5.88	0.546	—	—	Pigtail	Tangential	Constant Rate
MOOG-5758	Front	12.94	10	3.82	5.15	0.65	474	1400	Tangential	Tangential	Constant Rate
MOOG-CC255	Rear	13	8.75	5.33	6.61	0.64	211	870	Squared	Pigtail	Variable Rate
MOOG-CC661	Rear	13	10.5	4.25	5.53	0.64	339	830	Squared	Squared	Variable Rate
MOOG-CC81365	Rear	13	3.483	—	5.34	0.515	—	—	Pigtail	Pigtail	Variable Rate
MOOG-5662	Front	13.01	10.75	4.08	5.59	0.75	748	1690	Squared	Tangential	Constant Rate
MOOG-81596	Front	13.013	7	—	7.334	0.584	—	—	—	—	Constant Rate
MOOG-81716	Front	13.031	8.5	—	—	0.625	—	—	—	—	—
MOOG-81611	Rear	13.032	10	—	—	0.484	—	—	—	—	Constant Rate
MOOG-7396	Front	13.06	11	4.03	5.91	0.93	1400	2640	Squared	Tangential	Constant Rate
MOOG-81034	Front	13.06	6	4.45	5.51	0.53	166	1169	Squared	Tangential	Constant Rate
MOOG-CC603	Rear	13.06	10.75	5.5	7.12	0.81	393	910	Pigtail	Pigtail	Variable Rate
MOOG-80667	Rear	13.1	9.5	3.17	4.12	0.46	169	610	Pigtail	Squared	Constant Rate
MOOG-81657	Rear	13.109	9	—	—	0.656	—	—	—	—	Constant Rate
MOOG-81683	Rear	13.116	9	—	—	0.515	—	—	—	—	Constant Rate
MOOG-6101	Rear	13.12	8.75	5.51	7.06	0.76	389	1700	Pigtail	Pigtail	Constant Rate
MOOG-81358	Front	13.122	3.71	—	5.99	0.531	—	—	—	—	—
MOOG-CC81063	Rear	13.127	3.185	—	5.28	0.484	—	—	Pigtail	Pigtail	Variable Rate
MOOG-5762	Front	13.13	10	3.82	5.15	0.65	474	1500	Tangential	Tangential	Constant Rate
MOOG-81694	Front	13.133	8	—	—	0.515	—	—	—	—	Constant Rate
MOOG-5401	Rear	13.15	7.5	5.58	6.64	0.53	129	727	Pigtail	Pigtail	Constant Rate
MOOG-81698	Front	13.164	8	—	—	0.531	—	—	—	—	Constant Rate
MOOG-6082	Front	13.18	10	3.68	5.18	0.75	722	2406	Tangential	Pigtail	Constant Rate
MOOG-81607	Rear	13.182	10	—	4.286	0.468	—	—	—	—	—
MOOG-6560	Front	13.19	11	3.65	5.47	0.9	1501	3289	Tangential	Pigtail	Constant Rate
MOOG-81384	Front	13.19	9.5	—	4.73	0.58	—	—	—	—	—
MOOG-81242	Front	13.239	3.76	—	6.59	0.578	—	—	Squared	Tangential	Constant Rate
MOOG-81717	Rear	13.249	9	—	—	0.484	—	—	—	—	Constant Rate
MOOG-81410	Front	13.25	7	—	6.76	0.59	—	—	—	—	Constant Rate
MOOG-CC279	Rear	13.25	9	4.64	—	0.5	124	497	Squared	Tangential	Variable Rate
MOOG-5660	Front	13.26	10.75	4.08	5.52	0.71	598	1538	Squared	Tangential	Constant Rate
MOOG-81158	Front	13.275	3.049	—	5.84	0.515	—	—	Pigtail	Tangential	Constant Rate
MOOG-81391	Rear	13.29	9	—	5.21	0.61	—	—	—	—	Constant Rate
MOOG-81411	Rear	13.31	10	—	5.89	0.66	—	—	—	—	Constant Rate
MOOG-81230	Front	13.3125	3.284	—	5.88	0.546	—	—	Pigtail	Tangential	Constant Rate
MOOG-81122	Front	13.34	3.78	5.6	6.72	0.56	155	—	Pigtail	Squared	Constant Rate
MOOG-5658	Front	13.35	10.75	4.08	5.46	0.68	530	1405	Squared	Tangential	Constant Rate
MOOG-81719	Rear	13.371	9	—	—	0.437	—	—	—	—	—
MOOG-80994	Front	13.38	12	4.08	5.64	0.78	744	1031	Squared	Tangential	Constant Rate
MOOG-CC81373	Rear	13.4	7.5	4.3	5.34	0.52	—	—	Pigtail	Pigtail	—
MOOG-81688	Front	13.409	7.5	—	—	0.531	—	—	—	—	Constant Rate
MOOG-81127	Rear	13.41	7.66	—	4.27	0.66	—	—	—	—	Constant Rate
MOOG-81092	Front	13.43	10	3.14	4.48	0.67	595	—	Pigtail	Squared	Constant Rate
MOOG-81244	Front	13.433	5.586	—	6.3	0.828	—	—	Pigtail	Tangential	Constant Rate
MOOG-81407	Rear	13.44	10	—	5.18	0.58	—	—	—	—	Constant Rate
MOOG-81623	Rear	13.452	9	—	—	0.468	—	—	—	—	Constant Rate
MOOG-81627	Rear	13.455	9	—	—	0.656	—	—	—	—	Constant Rate
MOOG-81605	Rear	13.458	9	—	4.411	0.531	—	—	—	—	Constant Rate
MOOG-CC870	Front	13.47	11.5	3.61	4.99	0.68	485	899	Squared	Pigtail	Variable Rate
MOOG-81003	Rear	13.49	9	3.36	4.27	0.45	139	705	Tangential	Tangential	Constant Rate
MOOG-81602	Front	13.5	6.5	—	6.092	0.515	—	—	—	—	—
MOOG-81705	Rear	13.5	8	—	—	0.437	—	—	—	—	—
MOOG-CC81369	Rear	13.5	3.398	—	5.26	0.484	—	—	Pigtail	Pigtail	Variable Rate
MOOG-CC835	Rear	13.5	9.13	4.03	5.11	0.54	174	691	Squared	Pigtail	Variable Rate
MOOG-81585	Rear	13.51	9	—	5.362	0.671	—	—	—	—	Constant Rate
MOOG-81498	Front	13.52	8.5	—	6.61	0.64	—	—	—	—	Constant Rate
MOOG-81198	Front	13.5312	7.281	—	5.56	0.765	—	—	Squared	Tangential	Constant Rate
MOOG-81645	Front	13.533	9	—	—	0.5	—	—	—	—	Constant Rate
MOOG-81032	Front	13.6	6	4.45	5.51	0.53	166	1263	Squared	Tangential	Constant Rate
MOOG-81696	Front	13.6	8	—	—	0.531	—	—	—	—	Constant Rate
MOOG-6454	Front	13.61	10	3.67	5.34	0.82	1060	3841	Tangential	Pigtail	Constant Rate
MOOG-80902	Front	13.61	7.5	6.31	7.53	0.6	171	1045	Pigtail	Tangential	Constant Rate
MOOG-81612	Front	13.623	6	—	7.226	0.609	—	—	—	—	—
MOOG-81284	Front	13.625	7.039	—	4.44	0.625	—	—	—	—	—
MOOG-81248	Front	13.634	5.82	—	6.2	0.781	—	—	Pigtail	Tangential	Constant Rate
MOOG-6452	Front	13.64	10	3.68	5.24	0.78	843	3155	Pigtail	Tangential	Constant Rate
MOOG-80658	Front	13.65	9	5.18	6.34	0.57	168	756	Pigtail	Squared	Constant Rate
MOOG-80916	Front	13.68	9	3.68	5	0.65	430	—	Squared	Tangential	Constant Rate
MOOG-81055	Rear	13.68	4.16	3.56	4.56	0.5	163	—	Pigtail	Pigtail	Constant Rate
MOOG-CC81067	Rear	13.68	5.871	—	6.18	0.765	—	—	Squared	Tangential	Variable Rate
MOOG-81408	Front	13.69	7	—	6.76	0.59	—	—	—	—	—
MOOG-81485	Rear	13.69	8.5	—	4.32	0.48	—	—	—	—	—
MOOG-81609	Rear	13.697	10	—	5.975	0.765	—	—	—	—	Constant Rate
MOOG-7268	Front	13.72	11.27	4	5.56	0.78	748	1888	Squared	Tangential	Constant Rate
MOOG-80098	Front	13.72	11.27	4	5.56	0.78	748	1888	Squared	Tangential	Constant Rate
MOOG-81665	Rear	13.722	9.5	—	—	0.578	—	—	—	—	—
MOOG-81005	Rear	13.73	8	3.56	4.69	0.56	279	1600	Squared	Tangential	Constant Rate
MOOG-81401	Rear	13.74	10	—	4.27	0.66	—	—	—	—	Constant Rate
MOOG-81134	Front	13.75	4.23	4.4	5.44	0.52	128	—	Pigtail	Tangential	Constant Rate
MOOG-81362	Front	13.75	5.625	—	4.17	0.546	—	—	—	—	—
MOOG-CC840	Front	13.75	10.5	3.5	4.8	0.65	377	1323	Squared	Pigtail	Variable Rate
MOOG-CC842	Front	13.75	10.5	3.5	4.84	0.67	430	1447	Squared	Pigtail	Variable Rate
MOOG-81154	Front	13.77	5.86	—	4.32	0.578	—	—	Pigtail	Tangential	Constant Rate
MOOG-60199	Rear	13.78	9	5.43	6.51	0.54	134	641	Pigtail	Tangential	Constant Rate
MOOG-CC827	Rear	13.8	9.5	4.03	5.11	0.54	174	691	Squared	Pigtail	Variable Rate
MOOG-81202	Front	13.806	6.533	—	3.64	0.5	—	—	Pigtail	Squared	Constant Rate
MOOG-81383	Rear	13.81	11	—	4.48	0.48	—	—	—	—	—
MOOG-81415	Rear	13.81	10	—	4.52	0.55	—	—	—	—	Constant Rate
MOOG-8556	Front	13.81	9.5	3.5	4.68	0.59	364	1561	Squared	Tangential	Constant Rate
MOOG-81695	Rear	13.85	9	—	—	0.515	—	—	—	—	Constant Rate
MOOG-80912	Front	13.87	9	3.68	3.68	—	—	—	Squared	Tangential	Constant Rate
MOOG-80918	Front	13.87	9	3.68	6.68	—	—	—	Squared	Tangential	Constant Rate
MOOG-81234	Front	13.896	3.287	—	6.4	0.546	—	—	Pigtail	Tangential	Constant Rate
MOOG-81099	Rear	13.919	4.513	—	5.04	0.531	—	—	Pigtail	Tangential	Constant Rate
MOOG-81528	Front	13.92	9	—	6.59	0.64	—	—	—	—	Constant Rate
MOOG-CC80551	Rear	13.93	10	3.72	5.05	0.65	488	1618	Pigtail	Tangential	Variable Rate
MOOG-CC866	Front	13.94	10.5	3.5	4.88	0.68	489	1650	Squared	Pigtail	Variable Rate
MOOG-81633	Rear	13.943	8	—	—	0.578	—	—	—	—	Constant Rate
MOOG-81630	Rear	13.962	8	—	—	0.609	—	—	—	—	Constant Rate
MOOG-3222	Front	13.97	7.5	6.08	—	0.62	182	1179	Pigtail	Pigtail	Constant Rate
MOOG-81090	Front	14	10	3.14	4.48	0.67	595	—	Pigtail	Squared	Constant Rate
MOOG-81651	Rear	14	10	—	—	0.703	—	—	—	—	Constant Rate
MOOG-81714	Front	14	7	—	—	0.562	—	—	—	—	Constant Rate
MOOG-81495	Rear	14.01	8.5	—	4.4	0.53	—	—	—	—	—
MOOG-81421	Rear	14.02	9.5	—	4.4	0.48	—	—	—	—	—
MOOG-81608	Front	14.033	8	—	5.928	0.515	—	—	—	—	Constant Rate
MOOG-81146	Front	14.04	7.5	—	—	0.593	—	—	Tangential	Tangential	Constant Rate
MOOG-81103	Rear	14.046	4.518	—	4.66	0.437	—	—	Pigtail	Squared	Constant Rate
MOOG-80135	Rear	14.06	9	3.36	4.25	0.43	125	590	Tangential	Tangential	Constant Rate
MOOG-80661	Rear	14.06	11	4.66	6.11	0.71	442	1327	Squared	Tangential	Constant Rate
MOOG-81280	Front	14.0625	7.039	—	4.44	0.625	—	—	—	—	Constant Rate
MOOG-81053	Rear	14.11	4	4.02	5.06	0.52	141	—	Pigtail	Pigtail	Constant Rate
MOOG-80914	Front	14.12	9	3.68	5	0.65	430	—	Squared	Tangential	Constant Rate
MOOG-81252	Front	14.123	6.522	—	6.11	0.765	—	—	Pigtail	Tangential	Constant Rate
MOOG-81196	Front	14.125	7.281	—	5.56	0.765	—	—	Squared	Tangential	Constant Rate
MOOG-81599	Rear	14.125	8.5	—	4.324	0.484	—	—	—	—	Constant Rate
MOOG-81413	Rear	14.13	12.5	—	6.36	0.83	—	—	—	—	Constant Rate
MOOG-81483	Rear	14.13	8.5	—	4.32	0.48	—	—	—	—	Constant Rate
MOOG-81045	Rear	14.14	4.57	5.34	6.57	0.61	191	—	Pigtail	Squared	Constant Rate
MOOG-81639	Rear	14.15	8.5	—	—	0.5	—	—	—	—	Constant Rate
MOOG-81701	Rear	14.156	11.5	—	—	0.593	—	—	—	—	—
MOOG-CC721	Rear	14.16	11	4.02	5.1	0.54	182	572	Tangential	Pigtail	Variable Rate
MOOG-6319	Rear	14.17	9	5.58	6.64	0.53	119	616	Pigtail	Pigtail	Constant Rate
MOOG-81409	Rear	14.19	10	—	5.89	0.66	—	—	—	—	Constant Rate
MOOG-81429	Rear	14.19	10	—	4.52	0.55	—	—	—	—	Constant Rate
MOOG-639	Front	14.22	9.5	3.22	—	0.59	344	1625	Squared	Tangential	Constant Rate
MOOG-81161	Rear	14.25	4.476	—	4.51	0.5	—	—	—	—	Constant Rate
MOOG-6321	Rear	14.29	8.5	5.58	6.64	0.53	119	689	Pigtail	Pigtail	Constant Rate
MOOG-81246	Front	14.297	5.82	—	6.2	0.781	—	—	Pigtail	Tangential	Constant Rate
MOOG-80656	Front	14.31	9	5.18	6.34	0.57	168	857	Pigtail	Squared	Constant Rate
MOOG-80910	Front	14.31	9	3.68	5.02	0.67	482	—	Squared	Tangential	Constant Rate
MOOG-81088	Front	14.31	10	3.14	4.48	0.67	595	—	Pigtail	Squared	Constant Rate
MOOG-81115	Rear	14.31	3.76	—	6.1	0.52	—	—	—	—	Constant Rate

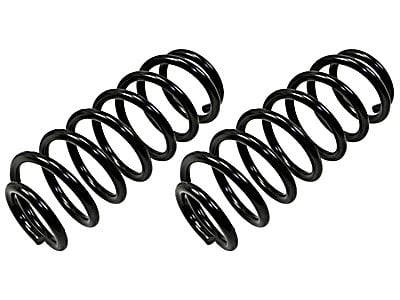

MOOG-81663	Rear	14.325	9.5	—	—	0.578	—	—	—	—	Constant Rate
MOOG-81606	Front	14.327	8	—	7.085	0.64	—	—	—	—	Constant Rate
MOOG-81675	Rear	14.37	9.5	—	—	0.531	—	—	—	—	Constant Rate
MOOG-81649	Rear	14.375	10	—	—	0.703	—	—	—	—	Constant Rate
MOOG-80099	Rear	14.38	9	3.36	4.25	0.43	125	631	Tangential	Tangential	Constant Rate
MOOG-81132	Front	14.4	7.47	3.7	—	0.64	347	—	Pigtail	Pigtail	Constant Rate
MOOG-81108	Front	14.46	12	3.13	4.533	0.7	660	—	Pigtail	Squared	Constant Rate
MOOG-81635	Front	14.5	8	—	—	0.578	—	—	—	—	—
MOOG-81250	Front	14.51	6.522	—	6.11	0.765	—	—	Pigtail	Tangential	Constant Rate
MOOG-81512	Front	14.52	10	—	4.53	0.55	—	—	—	—	—
MOOG-81194	Front	14.5625	7.281	—	5.56	0.765	—	—	Squared	Tangential	Constant Rate
MOOG-81621	Rear	14.563	9.5	—	—	0.562	—	—	—	—	—
MOOG-CC627	Rear	14.63	10	5.53	6.71	0.59	122	600	Pigtail	Pigtail	Variable Rate
MOOG-81300	Front	14.686	5.847	—	4.9	0.562	—	—	—	—	—
MOOG-81703	Rear	14.688	9	—	—	0.484	—	—	—	—	Constant Rate
MOOG-8732	Front	14.71	11	3.5	4.76	0.62	383	1420	Squared	Tangential	Constant Rate
MOOG-5626	Front	14.73	9	3.5	—	0.59	309	1730	Squared	Tangential	Constant Rate
MOOG-5379	Rear	14.75	8.5	5.57	6.69	0.56	122	760	Pigtail	Pigtail	Constant Rate
MOOG-81481	Rear	14.76	8.5	—	4.32	0.48	—	—	—	—	Constant Rate
MOOG-9642	Front	14.76	8	6.12	7.31	0.59	141	957	Pigtail	Tangential	Constant Rate
MOOG-81077	Rear	14.763	4.885	—	4.29	0.468	—	—	Pigtail	Pigtail	Constant Rate
MOOG-81097	Rear	14.804	4.513	—	5.04	0.531	—	—	Pigtail	Tangential	Constant Rate
MOOG-81302	Front	14.8125	3.631	—	7.09	0.609	—	—	—	—	—
MOOG-81522	Front	14.85	9	—	5.1	0.58	—	—	—	—	—
MOOG-81493	Rear	14.86	8.5	—	4.42	0.53	—	—	—	—	—
MOOG-5608	Front	14.88	11	4.08	5.46	0.68	424	1640	Squared	Tangential	Constant Rate
MOOG-60114	Front	14.88	10	3.36	4.53	0.57	290	1436	Pigtail	Tangential	Constant Rate
MOOG-81414	Front	14.88	8.5	—	6.87	0.64	—	—	—	—	—
MOOG-CC695	Rear	14.88	10	4	5.06	0.53	148	729	Pigtail	Pigtail	Variable Rate
MOOG-8594	Front	14.94	11	3.5	4.76	0.62	383	1500	Squared	Tangential	Constant Rate
MOOG-8088	Front	14.96	9	3.88	5.06	0.59	259	1540	Squared	Tangential	Constant Rate
MOOG-81482	Front	14.96	8.5	—	6.55	0.61	—	—	—	—	—
MOOG-81040	Front	15	7.5	5.65	6.87	0.6	160	1200	Pigtail	Pigtail	Constant Rate
MOOG-81642	Front	15	8	—	—	0.593	—	—	—	—	—
MOOG-CC650	Front	15	12.75	4.08	5.86	0.9	1025	2325	Squared	Tangential	Variable Rate
MOOG-81629	Front	15.009	8.5	—	—	0.593	—	—	—	—	—
MOOG-80974	Front	15.02	10	3.83	4.93	0.54	180	905	Squared	Tangential	Constant Rate
MOOG-81510	Front	15.05	10	—	4.55	0.56	—	—	—	—	Constant Rate
MOOG-5536	Front	15.06	11	3.63	5.01	0.68	487	1984.5	Squared	Tangential	Constant Rate
MOOG-81113	Rear	15.06	3.76	—	6.1	0.52	—	—	—	—	Constant Rate
MOOG-81614	Front	15.063	7	—	5.74	0.531	—	—	—	—	—
MOOG-81673	Rear	15.078	9.5	—	—	0.531	—	—	—	—	Constant Rate
MOOG-7226S	Front	15.09	13.12	4	5.82	0.9	1133	2224	Squared	Tangential	Constant Rate
MOOG-5610	Front	15.19	11	4.08	5.46	0.68	424	1750	Squared	Tangential	Constant Rate
MOOG-8600	Front	15.19	11	3.5	4.78	0.64	415	1740	Squared	Tangential	Constant Rate
MOOG-CC849	Rear	15.2	13	5.05	6.31	0.62	161	340.5	Pigtail	Pigtail	Variable Rate
MOOG-81043	Rear	15.24	10	4.65	5.91	0.53	125	655	Pigtail	Squared	Constant Rate
MOOG-CC635	Rear	15.25	10.25	4.3	5.3	0.5	104	518	Tangential	Pigtail	Variable Rate
MOOG-CC648	Front	15.25	12.75	4.05	5.78	0.87	870	2300	Squared	Tangential	Variable Rate

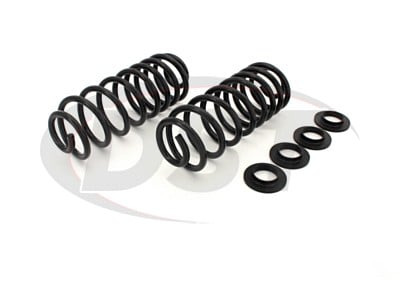

MOOG-CC865	Rear	15.25	11.5	4.54	5.72	0.59	163	620	Pigtail	Pigtail	Variable Rate
MOOG-81632	Rear	15.253	8	—	—	0.578	—	—	—	—	Constant Rate
MOOG-81296	Front	15.255	5.847	—	4.9	0.562	—	—	—	—	Constant Rate
MOOG-81718	Front	15.311	10	—	—	0.593	—	—	—	—	—
MOOG-81540	Front	15.35	7	—	6.71	0.56	—	—	—	—	—
MOOG-81081	Rear	15.351	3.785	—	6.53	0.593	—	—	Pigtail	Squared	Constant Rate
MOOG-81091	Rear	15.375	6.375	—	6.31	0.765	—	—	Squared	Tangential	Constant Rate
MOOG-81479	Rear	15.38	11.5	—	5.62	0.56	—	—	—	—	Constant Rate
MOOG-CC507	Rear	15.38	10	5.53	6.75	0.61	158	849	Pigtail	Pigtail	Variable Rate

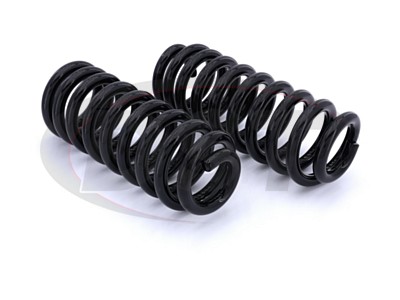

MOOG-CC844	Front	15.4	12.75	4	5.62	0.81	630	1557	Pigtail	Pigtail	Variable Rate
MOOG-CC81035	Rear	15.42	9.5	5.4	6.52	0.56	125	740	Pigtail	Tangential	Variable Rate
MOOG-81586	Front	15.472	10	—	5.096	0.64	—	—	—	—	—
MOOG-81508	Front	15.48	10	—	4.55	0.56	—	—	—	—	Constant Rate
MOOG-81480	Front	15.51	8.5	—	6.55	0.61	—	—	—	—	Constant Rate
MOOG-81012	Front	15.53	14	4.06	6.07	1.03	1570	2410	Tangential	Tangential	Constant Rate
MOOG-CC640	Front	15.54	12	4.1	5.73	0.81	622	2000	Squared	Tangential	Variable Rate
MOOG-81671	Rear	15.545	9.5	—	—	0.531	—	—	—	—	—
MOOG-81001	Rear	15.55	10	5.01	6.63	0.81	522	2900	Pigtail	Tangential	Constant Rate
MOOG-CC876	Front	15.56	13	3.98	5.62	0.78	589	1510	Pigtail	Pigtail	Variable Rate
MOOG-CC81370	Front	15.581	6.784	—	5.54	0.781	—	—	Pigtail	Pigtail	Variable Rate
MOOG-81061	Rear	15.61	7.12	4.55	6.05	0.75	416	—	Pigtail	Tangential	Constant Rate
MOOG-5600	Front	15.63	11	4.09	5.43	0.67	347	1600	Squared	Tangential	Constant Rate
MOOG-81110	Front	15.67	7.87	3.7	5.04	0.67	375	—	Pigtail	Tangential	Constant Rate
MOOG-81192	Front	15.68	7.5	5.6	6.76	0.58	131	—	Pigtail	Tangential	Constant Rate
MOOG-81121	Rear	15.69	6.32	—	6.26	0.72	—	—	—	—	Constant Rate
MOOG-81538	Front	15.7	9	—	6.51	0.59	—	—	—	—	Constant Rate
MOOG-81388	Front	15.72	11	—	6.09	0.59	—	—	—	—	Constant Rate
MOOG-CC670	Front	15.75	9	5.71	6.83	0.56	115	776	Pigtail	Pigtail	Variable Rate
MOOG-81677	Rear	15.772	10	—	—	0.531	—	—	—	—	—
MOOG-CC844S	Front	15.79	13	4	5.62	0.81	629	1759	Pigtail	Pigtail	Variable Rate
MOOG-81130	Front	15.8	7.47	3.7	—	0.64	347	—	Pigtail	Pigtail	Constant Rate
MOOG-CC697	Rear	15.81	9	5.42	6.54	0.56	122	680	Pigtail	Tangential	Variable Rate
MOOG-81658	Front	15.834	11	—	—	0.609	—	—	—	—	—
MOOG-5602	Front	15.88	11	4.09	5.43	0.67	347	1680	Tangential	Squared	Constant Rate
MOOG-80093	Rear	15.88	10	5.22	6.26	0.51	94	543	Tangential	Tangential	Constant Rate
MOOG-CC81368	Front	15.895	6.784	—	5.54	0.781	—	—	Pigtail	Pigtail	Variable Rate
MOOG-80662	Front	15.92	12.5	3.99	5.53	0.76	567	1941	Squared	Tangential	Constant Rate
MOOG-81120	Front	15.92	9.57	3.68	5.3	0.81	811	—	Pigtail	Tangential	Constant Rate
MOOG-80668	Front	15.93	11	3.73	4.99	0.62	330	1650	Pigtail	Tangential	Constant Rate
MOOG-CC808	Front	15.94	11.5	4	5.46	0.71	383	1700	Tangential	Pigtail	Variable Rate
MOOG-81669	Rear	15.975	9.5	—	—	0.546	—	—	—	—	Constant Rate
MOOG-81470	Front	15.98	12.5	3.68	5.19	0.75	552	1924	Pigtail	Tangential	Constant Rate
MOOG-81597	Rear	16	12.5	—	4.447	0.515	—	—	—	—	—
MOOG-81071	Rear	16.042	5.266	—	5.71	0.64	—	—	Pigtail	Pigtail	Constant Rate
MOOG-6312	Front	16.06	10.75	3.68	4.96	0.64	337	1800	Tangential	Tangential	Constant Rate
MOOG-81386	Front	16.12	11	—	6.09	0.59	—	—	—	—	—
MOOG-81678	Front	16.125	10	—	—	0.64	—	—	—	—	—
MOOG-80660	Front	16.14	12.5	3.99	5.53	0.76	567	2218	Squared	Tangential	Constant Rate
MOOG-CC820	Front	16.19	12.13	4	5.44	0.71	366	1428	Pigtail	Pigtail	Variable Rate
MOOG-CC81366	Front	16.208	6.784	—	5.54	0.781	—	—	Pigtail	Pigtail	Variable Rate
MOOG-81112	Front	16.22	7.87	3.7	5.04	0.67	375	—	Pigtail	Tangential	Constant Rate
MOOG-81394	Front	16.23	11	—	5.94	0.58	—	—	—	—	—
MOOG-81041	Rear	16.24	10	4.65	5.91	0.53	125	780	Pigtail	Squared	Constant Rate
MOOG-81119	Rear	16.25	6.32	—	6.26	0.72	—	—	—	—	Constant Rate
MOOG-81720	Front	16.25	8	—	—	0.531	—	—	—	—	—
MOOG-9046	Front	16.25	11.5	4.04	5.42	0.68	421	1955	Squared	Tangential	Constant Rate
MOOG-81518	Front	16.34	10	—	4.51	0.55	—	—	—	—	—

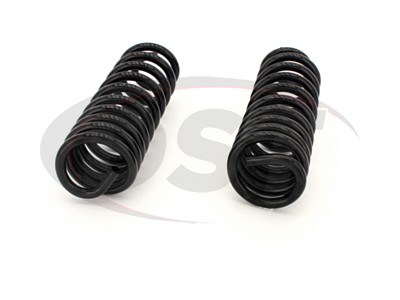

MOOG-CC822	Front	16.38	13	4	5.44	0.71	366	1230	Pigtail	Pigtail	Variable Rate
MOOG-3224	Front	16.39	11	4.04	5.08	0.51	134	719	Pigtail	Tangential	Constant Rate
MOOG-6033	Rear	16.44	11	3.67	4.99	0.65	370	2005	Tangential	Tangential	Constant Rate
MOOG-CS638	Front	16.44	—	3.63	4.89	0.63	328	—	Tangential	Tangential	Constant Rate
MOOG-81530	Front	16.48	9	—	6.51	0.59	—	—	—	—	—
MOOG-81532	Front	16.48	9	—	6.51	0.59	—	—	—	—	Constant Rate
MOOG-81667	Rear	16.519	9.5	—	—	0.546	—	—	—	—	—
MOOG-81222	Front	16.534	4.993	—	5.02	0.515	—	—	Pigtail	Tangential	Constant Rate
MOOG-9114	Front	16.56	11.5	4.07	5.47	0.7	422	2080	Squared	Tangential	Constant Rate
MOOG-CC880S	Front	16.6	12	4	5.62	0.81	652	3006	Pigtail	Pigtail	Variable Rate
MOOG-81051	Rear	16.62	5.12	4.43	5.69	0.63	210	—	Pigtail	Pigtail	Constant Rate
MOOG-81085	Rear	16.625	7	—	6.39	0.812	—	—	Squared	Tangential	Constant Rate
MOOG-5390	Front	16.63	11	3.63	4.95	0.65	336	1952	Squared	Tangential	Constant Rate
MOOG-60148	Front	16.63	13	4.23	5.86	0.81	742	2684	Squared	Tangential	Constant Rate
MOOG-60150	Front	16.63	13	4.24	5.86	0.81	—	—	Squared	Tangential	Constant Rate
MOOG-81008	Front	16.65	14	4.06	6.07	1.03	1570	4172	Tangential	Tangential	Constant Rate
MOOG-81679	Front	16.688	10	—	—	0.64	—	—	—	—	—
MOOG-CC621	Rear	16.7	12.75	5.53	6.87	0.67	175	640	Pigtail	Pigtail	Variable Rate
MOOG-81114	Front	16.74	7.87	3.7	5.04	0.67	375	—	Pigtail	Tangential	Constant Rate
MOOG-6084	Front	16.79	12	3.82	5.16	0.67	377	1805	Tangential	Tangential	Constant Rate
MOOG-658A	Front	16.89	11.81	3.81	5.19	0.68	404	2052	Tangential	Tangential	Constant Rate
MOOG-81406	Front	16.94	12.5	—	5.24	0.72	—	—	—	—	—
MOOG-CC824	Front	16.94	13	4	5.42	0.71	366	1442	Pigtail	Pigtail	Variable Rate
MOOG-5245	Rear	17	9	5.57	6.75	0.59	133	1060	Pigtail	Pigtail	Constant Rate
MOOG-7510	Front	17	—	7.05	—	0.64	—	—	Pigtail	Pigtail	Constant Rate
MOOG-7514	Front	17	—	7.05	—	0.64	—	—	Pigtail	Pigtail	Constant Rate
MOOG-81010	Front	17.02	14	4.07	5.95	0.93	1035	3134	Tangential	Tangential	Constant Rate
MOOG-5030	Front	17.05	10	4.08	5.52	0.71	419	2900	Squared	Tangential	Constant Rate
MOOG-5276	Front	17.05	10.5	4.09	5.41	0.65	303	1981	Squared	Tangential	Constant Rate
MOOG-81220	Front	17.105	4.993	—	5.02	0.515	—	—	Pigtail	Tangential	Constant Rate
MOOG-81049	Rear	17.13	5.44	4.43	5.61	0.59	159	—	Pigtail	Pigtail	Constant Rate
MOOG-81118	Front	17.14	9.53	3.68	5.18	0.75	552	—	Pigtail	Tangential	Constant Rate
MOOG-81006	Front	17.15	14	4.06	6.07	1.03	1570	4960	Tangential	Tangential	Constant Rate
MOOG-81069	Rear	17.177	5.266	—	5.71	0.64	—	—	Pigtail	Pigtail	Constant Rate
MOOG-3226	Front	17.25	11	4.04	5.08	0.51	134	834	Pigtail	Tangential	Constant Rate
MOOG-CC80841	Rear	17.32	13	4.52	5.81	0.64	201	869	Pigtail	Pigtail	Variable Rate
MOOG-5372	Front	17.38	11	3.63	4.89	0.62	289	1843	Squared	Tangential	Constant Rate
MOOG-656	Front	17.38	11.19	3.63	4.91	0.64	315	1940	Tangential	Tangential	Constant Rate
MOOG-5278	Front	17.5	10.5	4.09	5.41	0.65	298	2083	Squared	Tangential	Constant Rate
MOOG-6330	Front	17.5	11.25	3.68	4.94	0.62	293	1827	Squared	Tangential	Constant Rate
MOOG-CS578	Front	17.5	17.5	4.08	5.48	0.7	357	—	Squared	Tangential	Constant Rate
MOOG-81098	Front	17.66	10	3.7	4.93	0.6	253	1940	Pigtail	Tangential	Constant Rate
MOOG-5244	Front	17.75	11	3.63	4.91	0.64	315	2124	Tangential	Tangential	Constant Rate
MOOG-81004	Front	17.78	14	4.06	6.07	1.03	1570	5934	Tangential	Tangential	Constant Rate
MOOG-CC1712	Front	18.09	14	—	—	0.84	423	1670	Squared	Tangential	Variable Rate
MOOG-CC860	Front	18.31	15.5	4.03	5.65	0.81	512	1510	Pigtail	Pigtail	Variable Rate
MOOG-CC782	Front	18.4	15	4.04	5.2	0.57	146	503	Tangential	Pigtail	Variable Rate

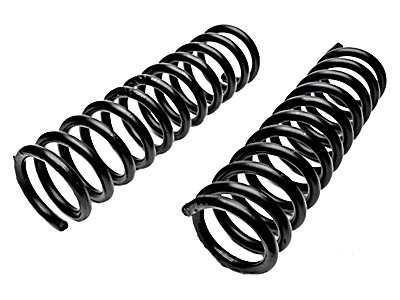

MOOG-6000	Front	18.58	11.81	3.82	5.14	0.65	305	2063	Tangential	Tangential	Constant Rate
MOOG-81149	Rear	18.605	7.5	—	5.87	0.671	—	—	—	—	—
MOOG-6204	Front	18.61	11	3.63	4.85	0.6	265	2015	Tangential	Tangential	Constant Rate
MOOG-81322	Front	18.63	14	—	7.55	0.78	—	—	—	—	—
MOOG-81320	Front	19.06	—	—	—	0.81	—	—	—	—	Constant Rate

How to Measure Coil Springs

End Type

Coil Springs have three types of ends: Square, Tangential and Pigtail. It is important that you select a coil spring that matches BOTH your end types, otherwise the coil spring won't fit. Your OE coil spring could have the same type ends, or a combination of both.

Type 1: Squared

With a Squared end, the final coil is bent back to touch the coil before it. The easiest way to know if you have a squared end is to stand the coil spring straight up. A squared end will let the spring sit flat on the ground and stay standing.

Type 2: Tangential

A Tangential end looks like it would just keep on going forever if the spring continued. The last coil is not bent back and it is not the pigtail (see below). Instead, the tangential coil spring looks as though a normal coil was just cut, otherwise it would have kept winding on forever. If you tried to stand it up straight, it would fall.

Type 3: Pigtail

The Pigtail is probably the easiest to identify. Its defining characteristic is the pig tail shape at the end. The final coil is squared off, but is a much smaller diameter than the rest of the spring.

Free Height

The free height of your coil spring is the length of your spring while it's just laying on the ground. Measure the spring from end to end with no weight on the coil to get the free height.

Installed Height

The installed height is a little more difficult to measure. The installed height is the length of the spring while installed on the car. Simply put, the installed height is the free height put under load.

Inner Diameter

The inner diameter of the coil can be measured with a tape measure once the spring is off. Measure the distance across the spring from inside the coils.

Bar Diameter

The bar diameter (coil thickness) can be measured easily with a digital caliper.

Spring Rate

The spring rate is pretty difficult to calculate without a relatively complicated machine. The spring rate is the amount of weight it takes to deflect the spring one inch while it is under load. In other words, you would have to have a machine that would compress the spring to the install height first. Then, you would have to see how much weight it would take to compress the spring one more inch. The higher a spring rate, the stiffer the spring. The lower the spring rate, the softer the spring.

Load

The load of a spring is the amount of weight required to compress the coil spring from free height to install height. This is usually calculated by coil spring manufacturers using the weight of the front (or rear) of the vehicle. Air conditioning, engine size, hood weight and many other parts play a role in determining how much weight the spring will be under before there is any travel and deflection. Depending on which springs you're trying to replace, you'll need to know the weight of either the front or rear of your vehicle to correctly match a coil spring. Moog lists in the specifications the amount of weight it takes to go from free height to install height on each of their coil springs (Load).

Spring Type

Moog offers two types of springs for a universal fitment: Constant Rate and Variable Rate.

Constant Rate

Moog Constant Rate coil springs return your vehicle to the original specifications. The rate at which the spring compresses and rebounds remains constant regardless of the amount of load on the spring. These coil springs are heat treated, have a weather resistant finish and use a urethane protective tube.

Variable Rate

Moog Variable Rate coil springs can be used as an original replacement or an upgrade to carry heavier loads. The resistance changes as the spring compresses, becoming progressively stiffer as the load on the springs increase. The springs include a "comfort range" with tightly spaced coils to give a smooth ride, and include a "load range" with widely spaced coils to minimize deflection and maintain chassis height when the vehicle load increases.
