Moog Universal Adjusting Sleeve Measurement Chart
| Image | Part Number | Length | Diameter | Internal Thread Side A | Internal Thread Side B |
|---|---|---|---|---|---|
 |

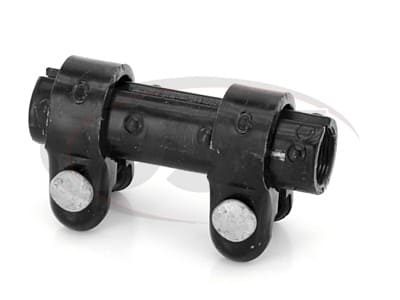

MOOG-ES3426S | 4.999 | - | 1inch-16RH | 1inch-16RH |
 |

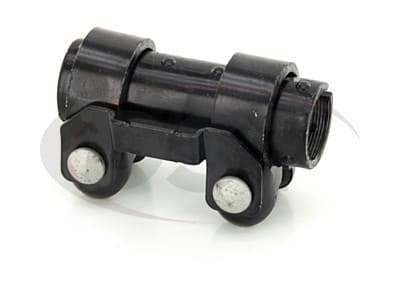

MOOG-ES3422S | 4.999 | - | 1-3/8Inch-16 LH | 1-3/8Inch-16 LH |
 |
MOOG-ES2251S | 2.5 | 1 | M16-1.5 | M16-1.5 |
 |

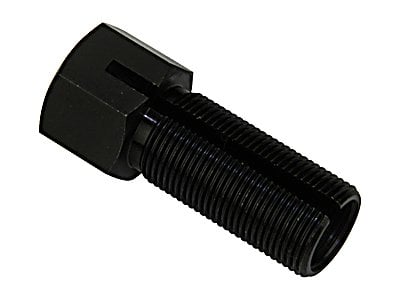

MOOG-ES3608S | 2.6 | - | M17-1.5-6H | M22-1.5-6G |
 |

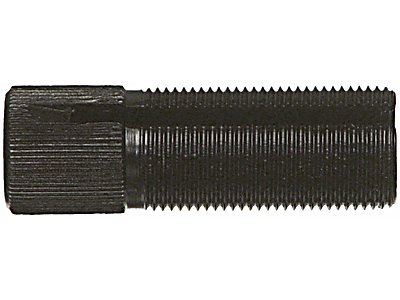

MOOG-ES3528S | 2.63 | - | M22-1.5 | M22-1.5 |
 |
MOOG-ES3088S | 3.25 | 0.75 | M18-1.5E | M18-1.5E |
 |
MOOG-ES3065S | 3.31 | - | M16-1.5 | M16-1.5 |
 |

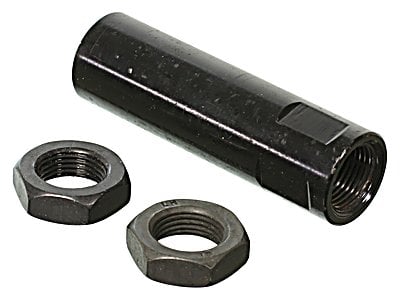

MOOG-ES3201S | 3.35 | 0.953 | M18-1.5 | M18-1.5 |
 |

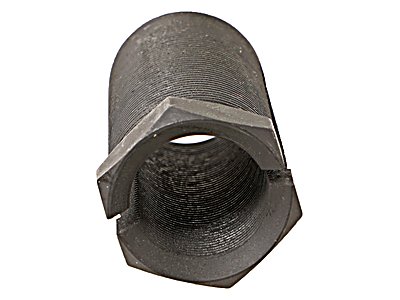

MOOG-ES2841S | 3.45 | 1.44 | 1.250-16RE | |
 |
MOOG-ES2900S | 3.543 | - | M16-1.5I | M16-1.5I |
 |
MOOG-ES2050S | 3.93 | 0.886 | M18-1.5I | M18-1.5I |
|
MOOG-ES3679S | 3.93 | 0.669 | M18-1.5 LH | M18-1.5 RH |
 |

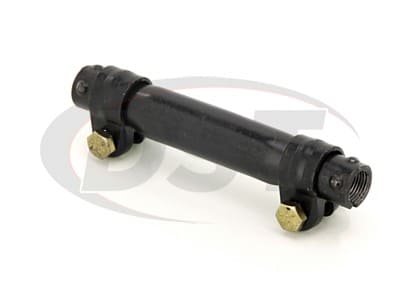

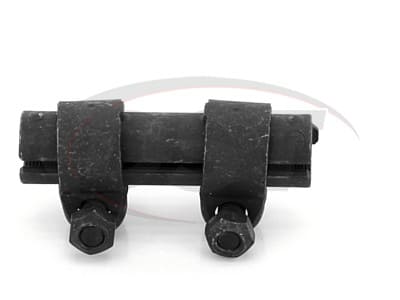

MOOG-ES426S | 4.26 | 0.885 | 0.687-18I | 0.687-18I |
 |
MOOG-ES2154S | 4.45 | 0.508 | M14-1.5/2 | M14-1.5/2 |
 |

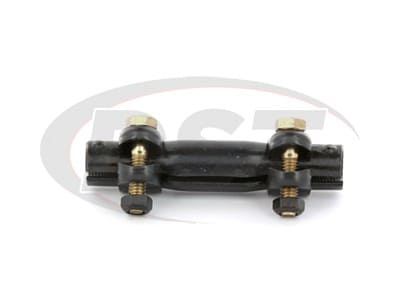

MOOG-ES2032S | 4.5 | 0.819 | 0.625-18 | 0.625-18 |
 |
MOOG-ES2323S | 4.5 | - | M22-1.5LI | M22-1.5LI |
 |
MOOG-ES362S | 4.5 | - | 0.875-18I | 0.875-18I |
 |

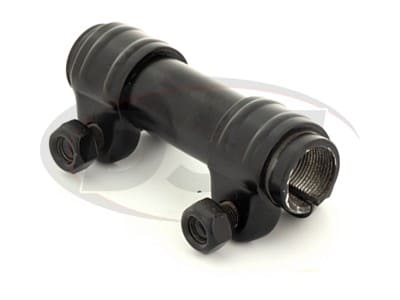

MOOG-ES3124S | 4.5 | 1.127 | 7/8-18 | 7/8-18 |
 |

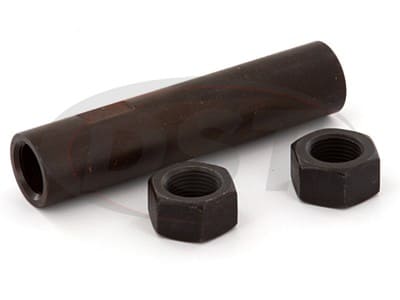

MOOG-ES3368S | 4.53 | 0.929 | M18-1.5L | M18-1.5R |
 |

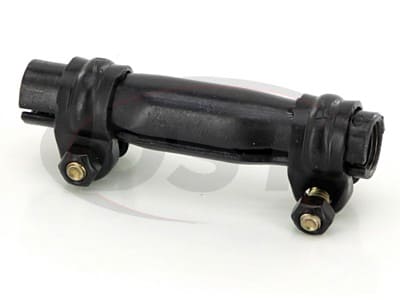

MOOG-ES2369S | 4.72 | 0.882 | M17-1.5I | M17-1.5I |
 |

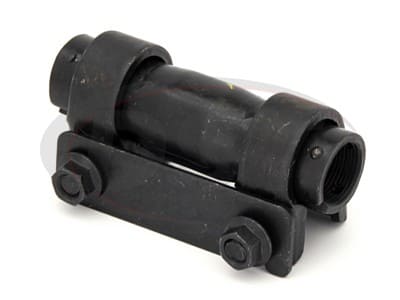

MOOG-ES3420S | 4.999 | - | 1-16 RH | 1-16 LH |
 |

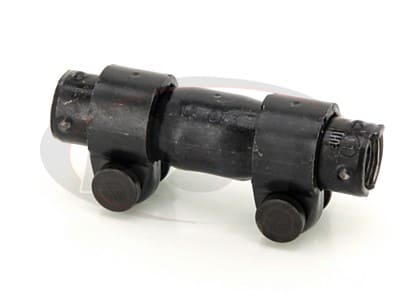

MOOG-ES3421S | 4.999 | - | 7/8Inch-16 LH | 7/8Inch-16 RH |
 |

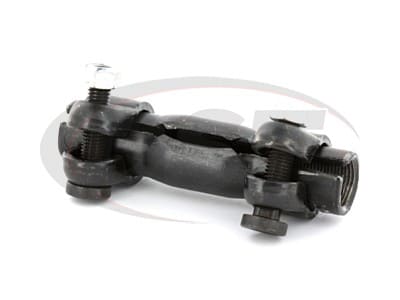

MOOG-ES2080S | 5 | 1.212 | M20-1.5 | M20-1.5 |
 |

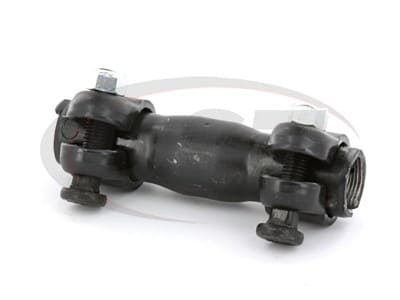

MOOG-ES2079S | 5.03 | 1.134 | M22-1.5 | M22-1.5 |
 |
MOOG-ES2094S | 5.43 | - | M17-1.5I | M17-1.5I |
|

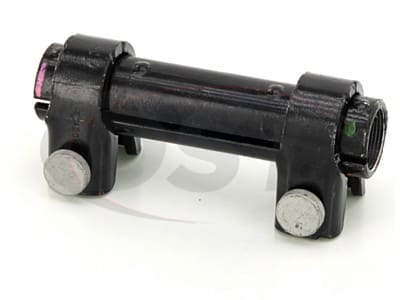

MOOG-ES3626S | 5.499 | - | 1-18 RH | 1-18 LH |
 |

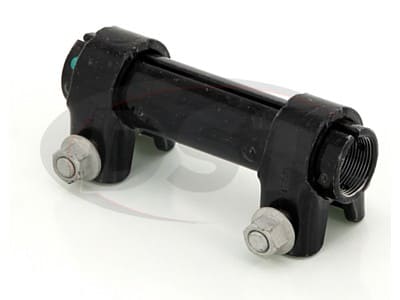

MOOG-ES2012S | 5.5 | 1.247 | 1.000-18 | 1.000-18 |
 |
MOOG-ES2066S | 5.5 | 1.247 | 1.000-18 | 1.000-18 |
 |
MOOG-ES350S | 6 | 0.777 | 6.625-15I | 6.625-15I |
 |
MOOG-ES2901S | 6.457 | - | M14-1.5-2 | M14-1.5-2 |
 |
MOOG-ES458S | 6.535 | 0.51 | M14-1.5E | M14-1.5E |
 |
MOOG-ES460S | 6.535 | 0.717 | M14-14 | M14-14 |
 |

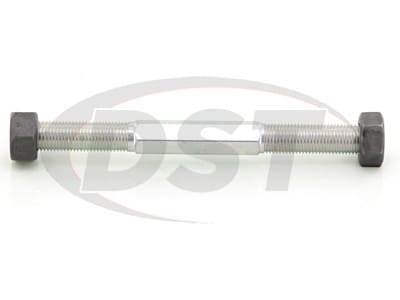

MOOG-ES3090S | 6.63 | 0.551 | M14-1.5E | M14-1.5E |
 |
MOOG-ES2173S | 6.77 | 0.748 | M14-1.5I | M14-1.5I |
 |
MOOG-ES440S | 8.12 | 0.88 | 0.687-18I | 0.687-18I |
 |
MOOG-ES2016S | 8.25 | 0.85 | 0.562-18LR | 0.562-18LR |
 |

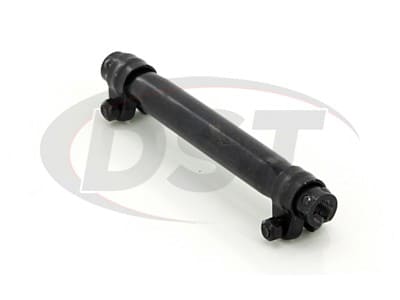

MOOG-ES319S | 8.25 | 0.95 | 0.562-18I | 0.562-18I |
 |
MOOG-ES430S | 8.25 | 0.758 | 0.562-18 | 0.562-18 |
 |
MOOG-ES3089S | 8.42 | 0.598 | M14-1.5E | M14-1.5E |
 |

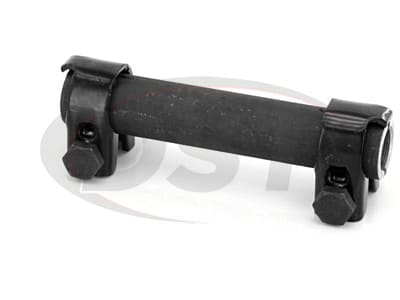

MOOG-ES3498S | 8.59 | - | 1-1/8 Inch-18L/R | 1-1/8 Inch-18L/R |
 |
MOOG-ES2058S | 9.49 | - | M16-1.5L | M16-1.5RL |
 |

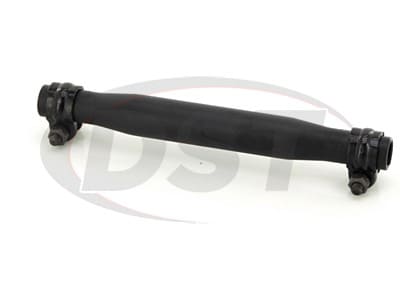

MOOG-ES2146S | 9.66 | 1.12 | 0.687-18 | 0.687-18 |
 |

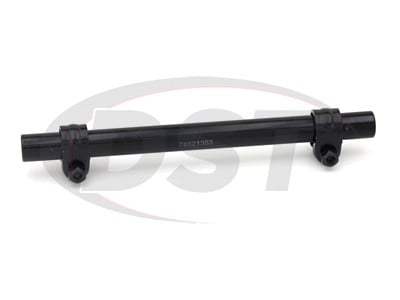

MOOG-ES677S | 10.56 | 0.81 | 0.625-18 | 0.625-18 |
 |

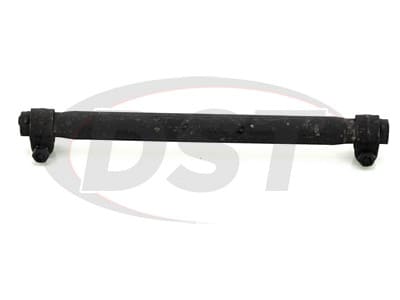

MOOG-ES3311S | 11.92 | 0.931 | M16-1.5 | M16-1.5 |
 |

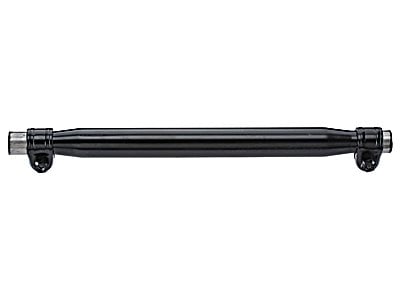

MOOG-DS1038S | 14.34 | 1.12 | 0.687-18 | 0.687-18 |
 |
MOOG-DS1236S | 24.11 | - | 0.687-18 | 0.687-18 |
 |
MOOG-DS1051S | 25.85 | 8.66 | 0.687-18 | 0.687-18 |
 |

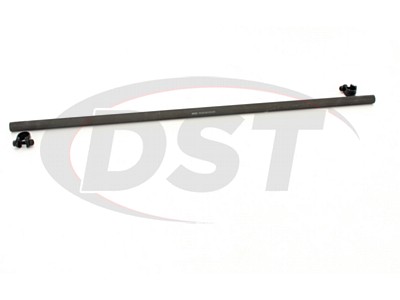

MOOG-DS1326S | 34.25 | - | 11/16-18 | 11/16-18 |
 |
MOOG-ES3562S | 34.44 | - | M21-1.5L/R | M21-1.5L/R |
 |
MOOG-DS1045S | 36.41 | - | 0.687-18 | 0.687-18 |
 |
MOOG-ES2758S | 38.949 | - | M21-1.5 | M21-1.5 |
