- The Quick-Strut line comes with a Lifetime warranty handled through Monroe.
The Roadmatic line is not covered by a warranty.
We will provide the warranty form that will then be sent, by the customer, to Monroe and they handle the process from there.
* All warranty claims are subject to approval by Monroe.
Please contact us for further information.Limited to ONE replacement during guarantee period

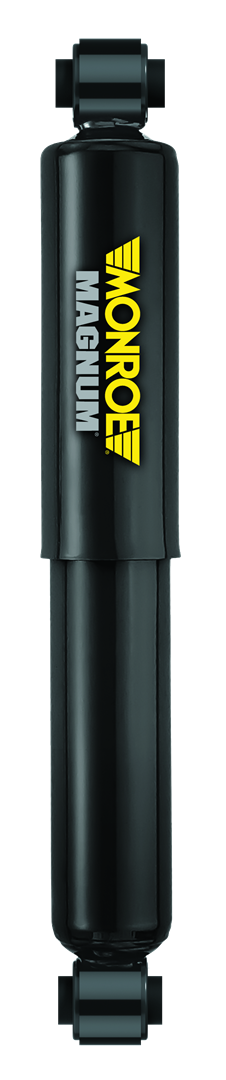

Magnum Shocks
Large bore shock absorbers for durability, stability and comfort to handle high-mileage and severe use, delivering reduced cost per mile.
Heavy Duty Durability for Commercial Vehicles
PTFE Coated Bearing
Reduces friction between the rod and the rod guide for improved durability.
Robust Hydraulic Lock-Out
Hydraulic lock-out design* prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly while maintaining full rod strength.
Proprietary Shouldered Bushing
Shouldered bushing or bonded bushing with sleeve are used where applicable to prevent bushing walkout for improved quality and durability.
*Where applicable.
Monroe Heavy Duty
Full line offering of commercial vehicle ride control solutions backed by OE expertise and innovative technologies trusted by OE manufacturers to maximize vehicle performance.
| Overview | |
|---|---|
| Grade | Premium |
| Active or Passive Suspension | Passive |
| Dimensions | |
|---|---|
| Extended Length | 18.75 in (476.3mm) |
| Compressed Length | 11.5 in (292.1mm) |
| Travel Length | 7.25 in (184.1mm) |
| Features | |
|---|---|
| Gas Charged | Yes |
| Adjustable Ride Height | No |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Materials, color & finish | |
|---|---|
| Color | Gray |
| What's included | |
|---|---|
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Mounting Hardware Included | Yes |
